Description

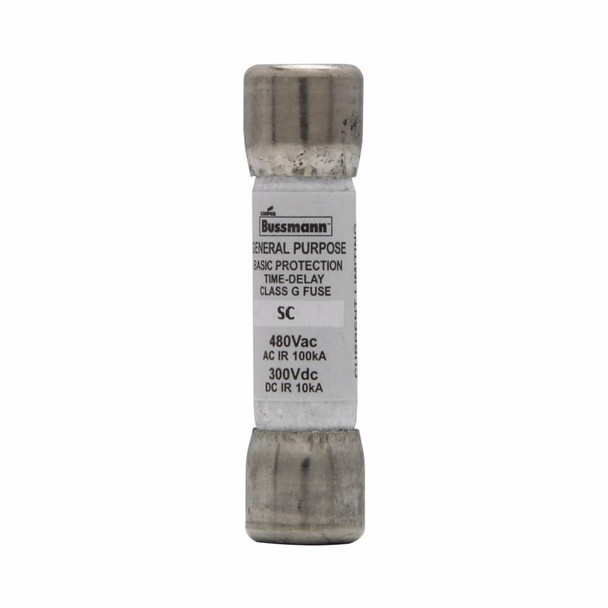

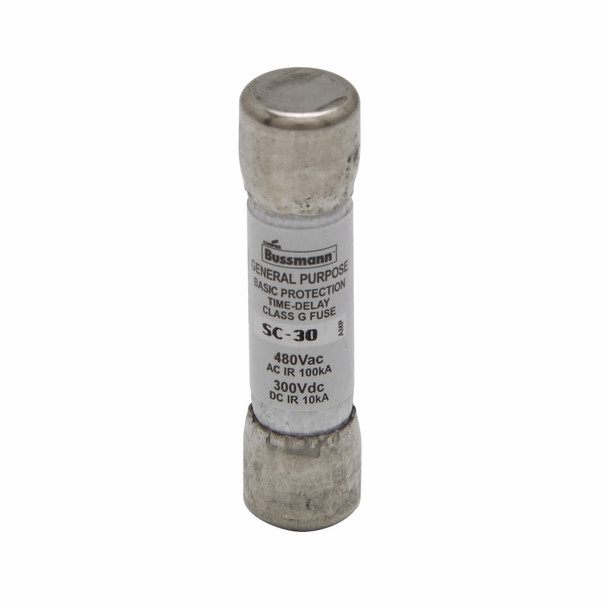

Bussmann BK/SC-30 Time Delay Fuse
Bussmann Time Delay Fuse, Current Limiting, Series: SC Series, Rejection/Non-Rejection: Rejection, 30 A, 480 VAC/300 VDC, 10/100 kA Interrupt, Class: G, 12 s at 200% Response, Ferrule Terminal, Holder Mount, 0.41 in Dia x 1.62 in L Body Size
Additional Description: BUSS-BK/SC-30 BUSS SC FUSE CLASS G
Catalog Description: Eaton Bussmann series SC fuse, Current-limiting time-delay fuse, Rejection style, 30 A, Class G, Non-indicating, Ferrule end x ferrule end, 12 sec at 200%, 10 kAIC at 300 Vdc,100 kAIC at 480 Vac, Bulk, 480 V, 300 Vdc
Specifications
| UNSPSC | 39121607 |
|---|---|
| Amperage Rating | 30 |
| Amperage Rating | 30 A |
| Class | G |
| Interrupt Rating | 10/100 |
| Interrupt Rating | 10/100 kA |
| Mounting type | Holder |
| Rejection/Non-Rejection | Rejection |
| Response Time | 12 |
| Response Time | 12 s at 200% |
| Series | SC Series |
| Terminal Type | Ferrule |
| Type | Current Limiting |
| Voltage Rating | 480 VAC/300 VDC |
