Description

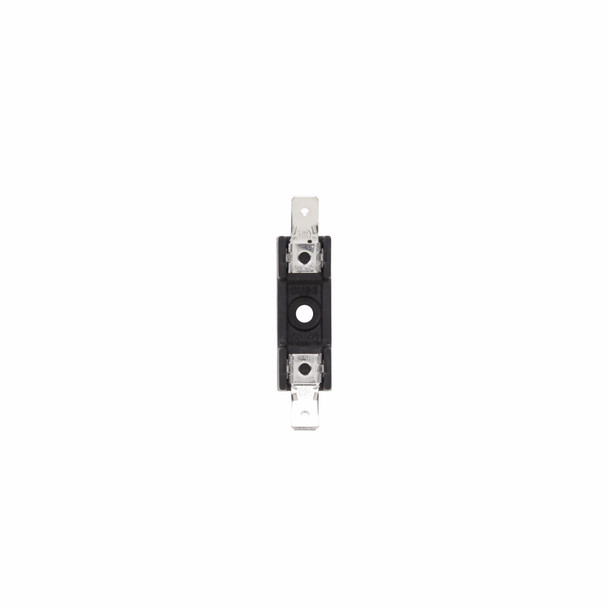

Bussmann BK/S-8201-1-R Fuse Block
Bussmann Fuse Block, Series: 8200, 300 VAC/VDC, 16/20 A, 1 Pole, 1/4 in Quick Connect/Straight Connection, Bolted-In Mounting, 1-1/4 in Fuse Length, 1/4 in Diameter Fuse, 130 deg C, Thermoplastic, Black, 2.16 in L x 0.5 in W x 0.77 in H Dimensions
Additional Description: BUSS-BK/S-8201-1-R BUSS FUSEBLOCK
Catalog Description: 20AMP 300V 1PL FUSE BLCK
Specifications
| UNSPSC | 39121607 |
|---|---|
| Amperage Rating | 16/20 |
| Amperage Rating | 16/20 A |
| Color | Black |
| Connection type | 1/4 in Quick Connect/Straight |
| Dimensions | 2.16 in L x 0.5 in W x 0.77 in H |
| Fuse Diameter | 1/4 |
| Fuse Diameter | 1/4 in |
| Fuse Length | 1-1/4 |
| Fuse Length | 1-1/4 in |
| Material | Thermoplastic |
| Mounting type | Bolted-In |
| Mounting type | Bolt-In |
| Number of Poles | 1 |
| Series | 8200 |
| Temperature Rating (Degrees F) | 130 |
| Temperature Rating (Degrees F) | 130 deg C |
| Voltage Rating | 300 |
| Voltage Rating | 300 VAC/VDC |
