Description

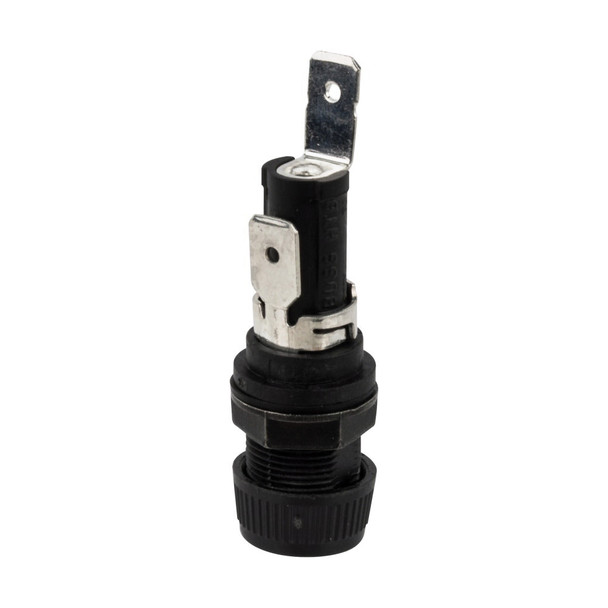

Bussmann BK/HTB-66I-R Fuse Holder
Bussmann Fuse Holder, Series: HTB, 250 VAC, 20 A, 1 Pole, 1/4 in Quick Connect In-Line Rear, Front Panel Hex Nut Mount, 1-1/4 in Fuse Length, 1/4 in Fuse Dia, -55 to 85 deg C, Thermoplastic, Black, 1.69 in L
Additional Description: BUSS-BK/HTB-66I-R (N) FUSEHOLDER NON-CANCELABLE, NON-RETURNABLE
Catalog Description: 20A 250V 1/4" x 1-1/4" Knob Type RoHS Compliant Panel Mount Fuseholder, 1/4" Quick Connects/Solder, In-Line Rear Terminal - Bulk Packaging
Specifications
| UNSPSC | 39121607 |
|---|---|
| Amperage Rating | 20 |
| Amperage Rating | 20 A |
| Color | Black |
| Connection type | 1/4 in Quick Connect In-Line Rear |
| Dimensions | 1.69 in L |
| Fuse Diameter | 1/4 |
| Fuse Diameter | 1/4 in |
| Fuse Length | 1-1/4 |
| Fuse Length | 1-1/4 in |
| Material | Thermoplastic |
| Mounting type | Front Panel Hex Nut |
| Number of Poles | 1 |
| Series | HTB |
| Temperature Rating (Degrees F) | -55 to 85 |
| Temperature Rating (Degrees F) | -55 to 85 deg C |
| Voltage Rating | 250 |
| Voltage Rating | 250 VAC |
