Description

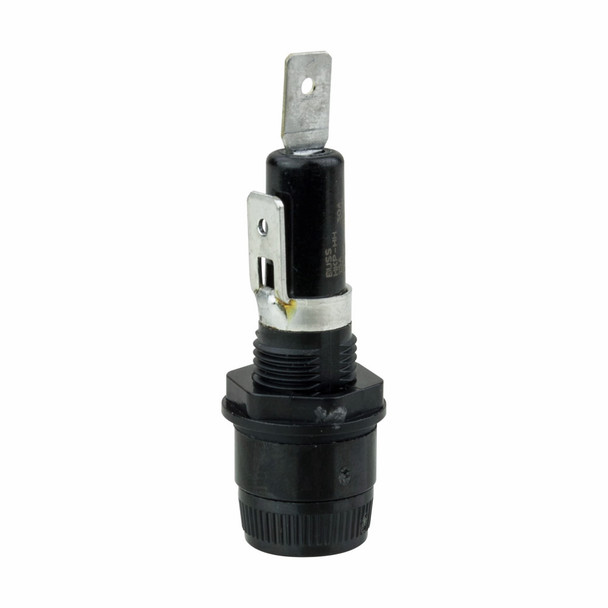

Bussmann BK/HKP-HH-R Fuse Holder
Bussmann Fuse Holder, Standard, Series: HKP, 250 VAC, 15 A, 1 Pole, 1/4 in Tin Plated Brass Quick Connect, Panel Mount, 1-1/4 in Fuse Length, 1/4 in Fuse Dia, 150 deg C, For Use With: Non-Indicating Fuse, Thermoplastic, Black, 0.79 in Dia x 2.44 in L
Additional Description: BUSS-BK/HKP-HH-R (N) BUSS FUSEHOLDER ROHS COMPLIANT NON-CANCELABLE, NON-RETURNABLE
Catalog Description: RoHS Compliant
Specifications
| UNSPSC | 39121607 |
|---|---|
| Amperage Rating | 15 |
| Amperage Rating | 15 A |
| Color | Black |
| Connection type | 1/4 in Tin Plated Brass Quick Connect |
| Dimensions | 0.79 in Dia x 2.44 in L |
| Fuse Diameter | 1/4 |
| Fuse Diameter | 1/4 in |
| Fuse Length | 1-1/4 |
| Fuse Length | 1-1/4 in |
| Material | Thermoplastic |
| Mounting type | Panel |
| Number of Poles | 1 |
| Series | HKP |
| Suitable For Use With | Non-Indicating Fuse |
| Temperature Rating (Degrees F) | 150 |
| Temperature Rating (Degrees F) | 150 deg C |
| Type | Standard |
| Voltage Rating | 250 |
| Voltage Rating | 250 VAC |
