Description

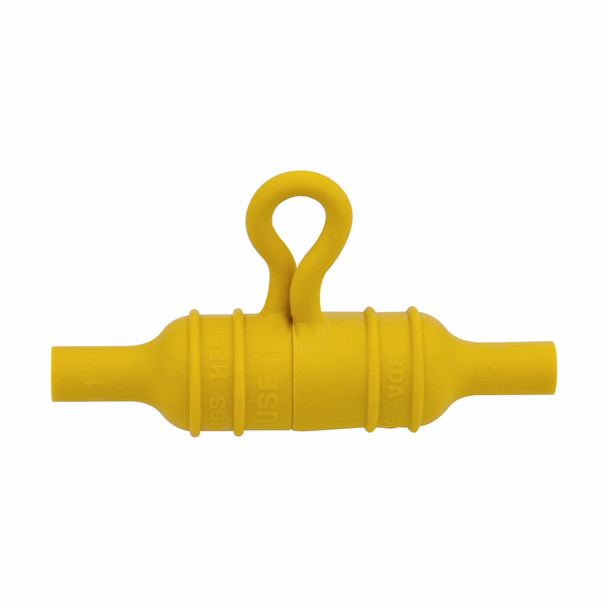

Bussmann BK/HFB-R
Bussmann Fuse Holder, Water Resistant, Series: HFB, 32 VDC, 30 A, 1 Pole, Tin Plated Copper Crimp, 18 to 12 AWG Wire, In-Line Mount, 1-1/4 in Fuse Length, 1/4 in Fuse Dia, -40 to 150 deg C, For Use With: Glass Tube Fuse, Thermoplastic Rubber, Yellow, 3/4 in Dia x 3 in L
Additional Description: BUSS-BK/HFB-R FUSEHOLDER ROHS COMPLIANT
Catalog Description: 30A 32V 1/4" x 1-1/4" Inline RoHS Compliant Fuseholder, Waterproof - Bulk Packaging
Specifications
| UNSPSC | 39121607 |
|---|---|
| Amperage Rating | 30 A |
| Color | Yellow |
| Connection type | Tin Plated Copper Crimp |
| Dimensions | 3/4 in Dia x 3 in L |
| Fuse Diameter | 1/4 in |
| Fuse Length | 1-1/4 in |
| Material | Thermoplastic Rubber |
| Mounting type | In-Line |
| Number of Poles | 1 |
| Series | HFB |
| Suitable For Use With | Glass Tube Fuse |
| Temperature Rating (Degrees F) | -40 to 150 deg C |
| Type | Water Resistant |
| Voltage Rating | 32 VDC |
| Wire Size | 18 to 12 AWG |
