Description

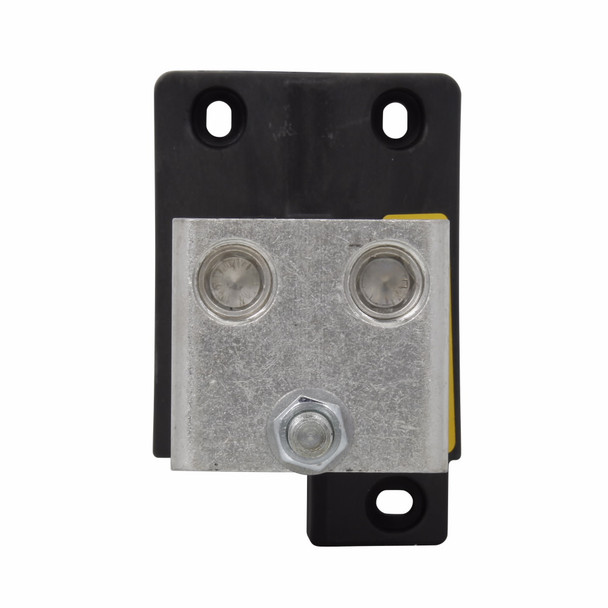

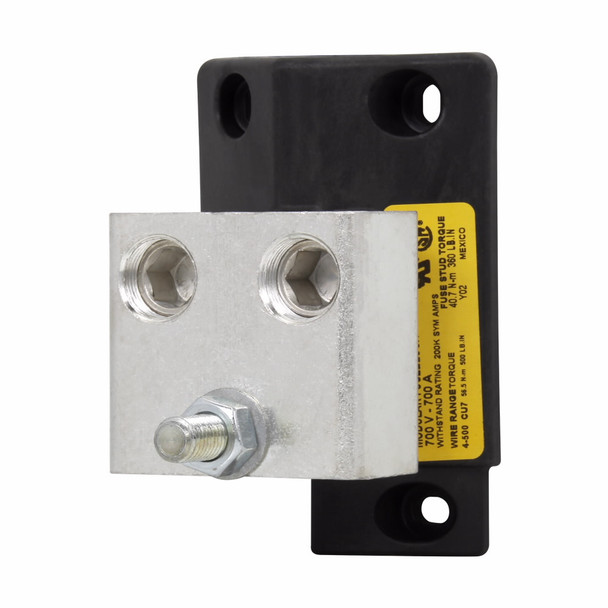

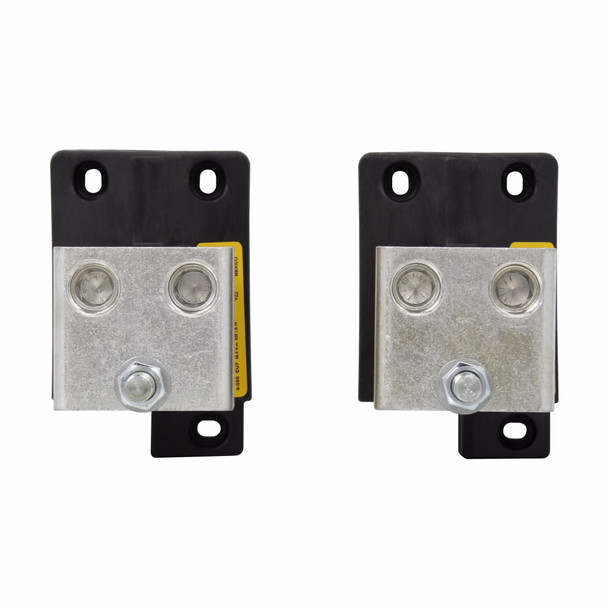

Bussmann BH-3145 Fuse Block
Bussmann High Speed Fuse Block, Modular Square, Series: BH Series, 1250 V, 700 A, 1 Pole, Stud, 4 AWG to 500 kcmil Wire, Stud/Nut Mount, For Use With: Semiconductor and High Speed Fuse, Thermoplastic, 6.4 in L x 4.1 in W x 7.2 in H
Additional Description: BUSS-BH-3145 MODULAR BLOCK
Catalog Description: Modular Block, Modular, Light weight, 700A, 1250V, Thermoplastic base, steel-plated mounting studs and nut, tin-plated aluminum connector, spring steel washer material, 4 AWG to 500 MCM copper wire, 3/8 in-16 TPI stud connection, Tin-plated
Specifications
| UNSPSC | 39121624 |
|---|---|
| Amperage Rating | 0 to 700 |
| Amperage Rating | 700 A |
| Connection type | 3/8-16 Stud |
| Connection type | Stud |
| Connection type | Stud Terminal |
| Dimensions | 6.4 in L x 4.1 in W x 7.2 in H |
| Dimensions | 79.34 in L x 3.25 in W x 3.882 in H |
| Material | Thermoplastic |
| Mounting type | Chassis |
| Mounting type | Stud/Nut |
| Number of Poles | 1 |
| Series | BH Series |
| Series | BH-3 |
| Suitable For Use With | Bussmann High Speed Fuse |
| Suitable For Use With | Semiconductor and High Speed Fuse |
| Suitable For Use With | Semiconductor, High Speed Fuse |
| Type | High Speed Modular |
| Type | Lightweight Modular |
| Type | Modular Square |
| Voltage Rating | 0 to 1250 |
| Voltage Rating | 1250 V |
| Wire Size | 4 AWG to 500 kcmil |
