Description

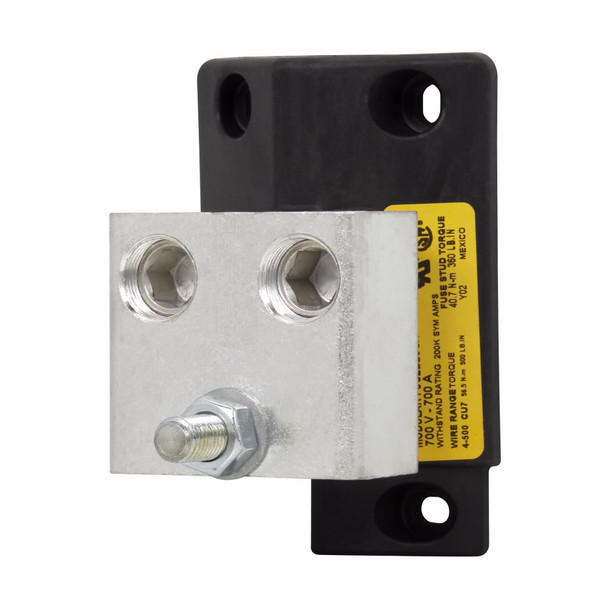

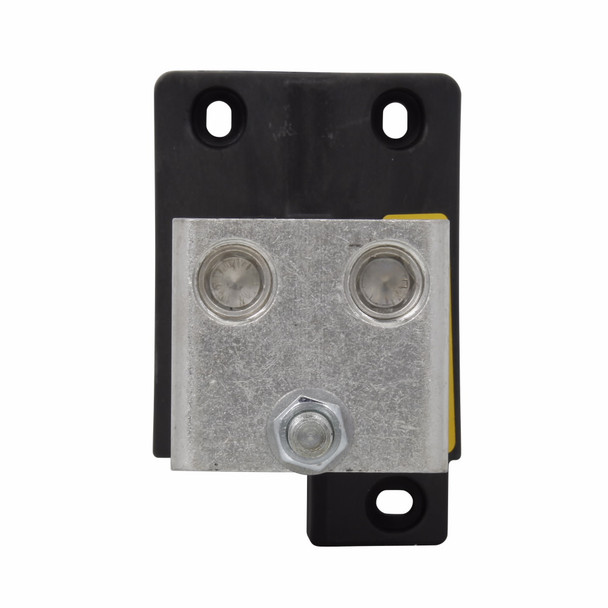

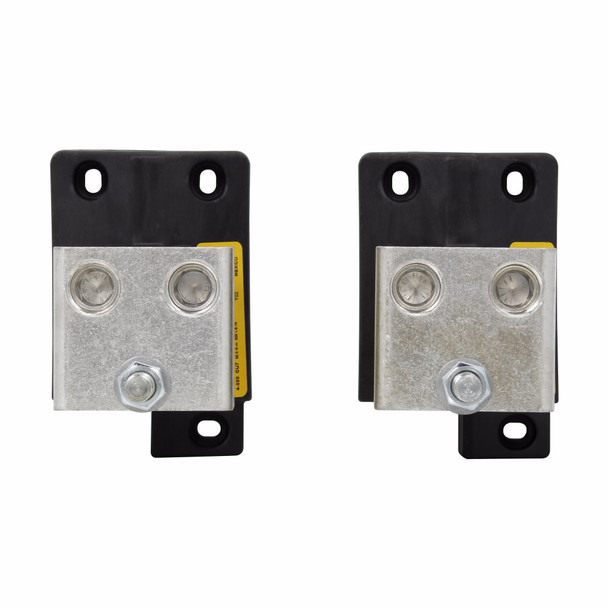

Bussmann BH-3144 Fuse Block
Bussmann High Speed Fuse Block, Modular Square, Series: BH Series, 0 to 1200 V, 0 to 700 A, 1 Pole, Stud, 4 AWG to 500 kcmil Wire, For Use With: Semiconductor and High Speed Fuse, Thermoplastic, 4-1/8 in L x 3 in W x 3 in H
Additional Description: BUSS-BH-3144 MODULAR BLOCK
Catalog Description: Fuse Block, Modular, 0-700A, 0-1200V, High temperature thermoplastic material, 7/16 in-14 TPI stud connection, 4 AWG to 500 MCM (copper) wire size
Specifications
| UNSPSC | 39121624 |
|---|---|
| Amperage Rating | 0 to 700 |
| Amperage Rating | 0 to 700 A |
| Connection type | 7/16-14 Stud |
| Connection type | Stud |
| Connection type | Stud Terminal |
| Dimensions | 11.34 in L x 3.25 in W x 3.882 in H |
| Dimensions | 4-1/8 in L x 3 in W x 3 in H |
| Material | Thermoplastic |
| Mounting type | Chassis |
| Number of Poles | 1 |
| Series | BH Series |
| Series | BH-3 |
| Suitable For Use With | Bussmann High Speed Fuse |
| Suitable For Use With | Semiconductor and High Speed Fuse |
| Suitable For Use With | Semiconductor, High Speed Fuse |
| Type | 2-Hole Lightweight Modular |
| Type | High Speed Modular |
| Type | Modular Square |
| Voltage Rating | 0 to 1200 V |
| Voltage Rating | 0 to 1250 |
| Wire Size | 4 AWG to 500 kcmil |
