Description

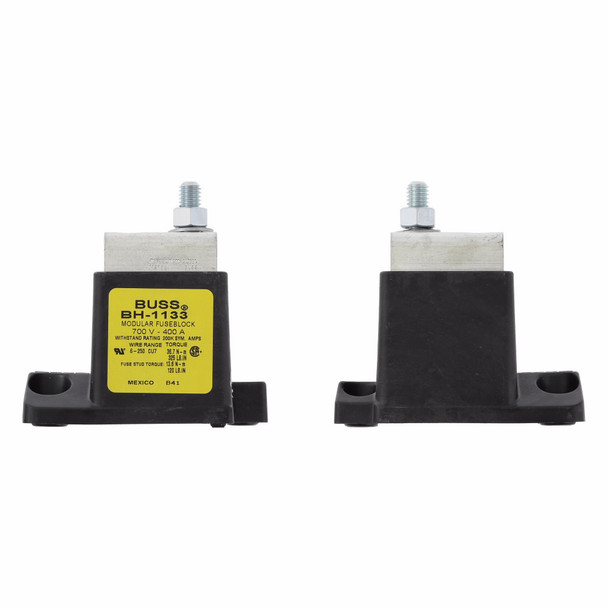

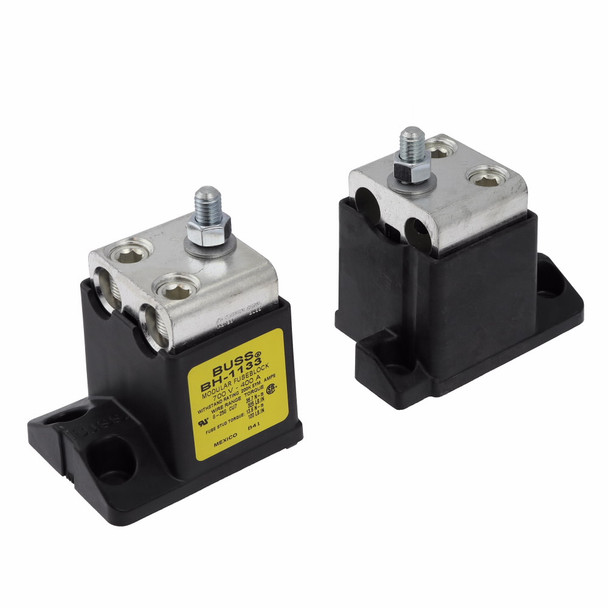

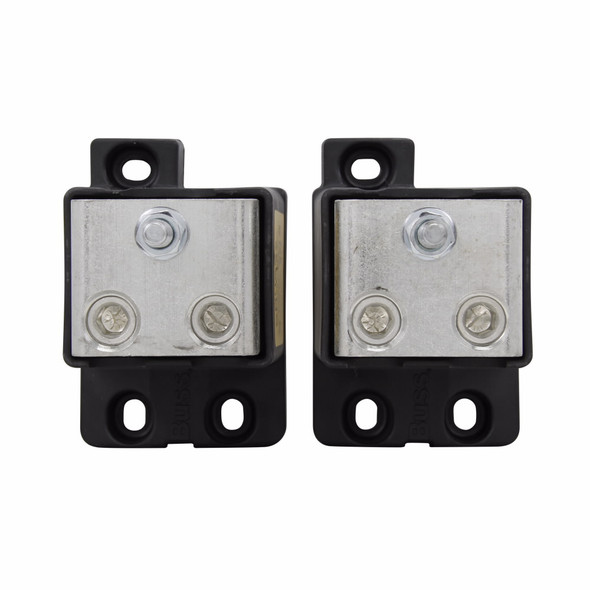

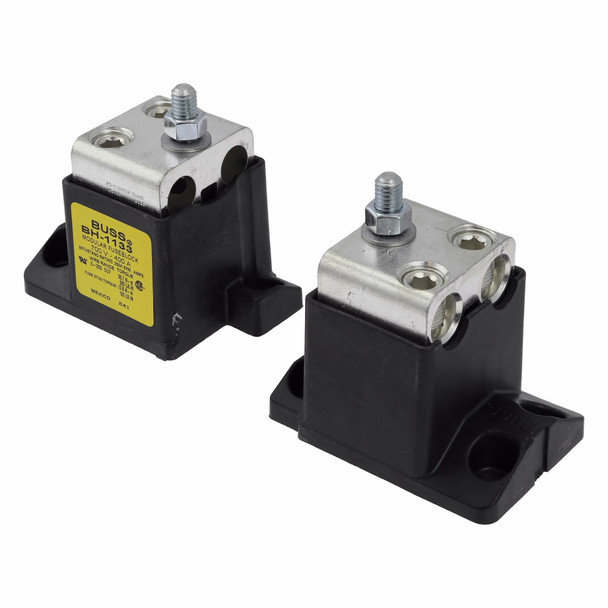

Bussmann BH-1133 Fuse Block
Bussmann High Speed Fuse Block, Modular Square, Series: BH Series, 2500 V, 400 A, 1 Pole, Stud Connection, 6 AWG to 250 kcmil Wire, Stud/Nut Mounting, For Use With: Semiconductor and High Speed Fuse, Thermoplastic, 6.7 in L x 4.7 in W x 3.1 in H Dimensions
Additional Description: BUSS-BH-1133 MODULAR BLOCK
Catalog Description: Modular Block, Modular, Light weight, 400A, 2500V, Thermoplastic base, steel-plated mounting studs and nut, tin-plated aluminum connector, spring steel washer material, 6 AWG to 250 MCM copper wire, 3/8 in-16 TPI stud connection, Tin-plated
Specifications
| UNSPSC | 39121624 |
|---|---|
| Amperage Rating | 0 to 400 |
| Amperage Rating | 400 A |
| Connection type | 3/8-16 Stud |
| Connection type | Stud |
| Connection type | Stud Terminal |
| Dimensions | 6.7 in L x 4.7 in W x 3.1 in H |
| Dimensions | 8.54 in L x 2.12 in W x 2.68 in H |
| Material | Thermoplastic |
| Mounting type | Chassis |
| Mounting type | Stud/Nut |
| Number of Poles | 1 |
| Series | BH Series |
| Series | BH-1 |
| Suitable For Use With | Bussmann High Speed Fuse |
| Suitable For Use With | Semiconductor and High Speed Fuse |
| Suitable For Use With | Semiconductor, High Speed Fuse |
| Type | High Speed Modular |
| Type | Lightweight Modular |
| Type | Modular Square |
| Voltage Rating | 0 to 2500 |
| Voltage Rating | 2500 V |
| Wire Size | 6 AWG to 250 kcmil |
