Description

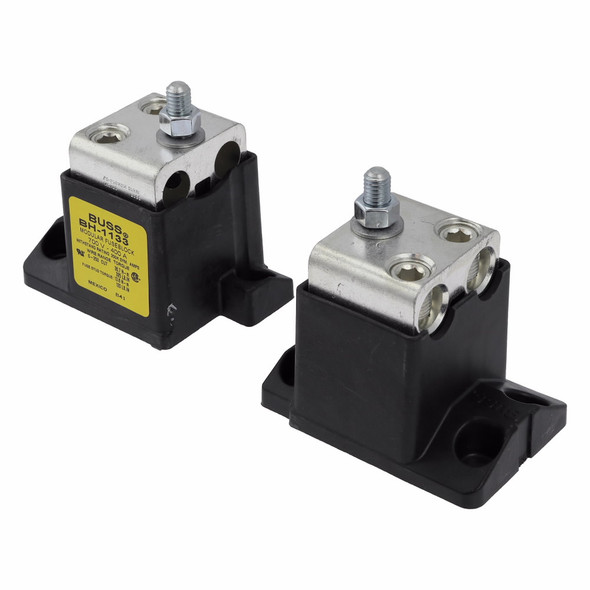

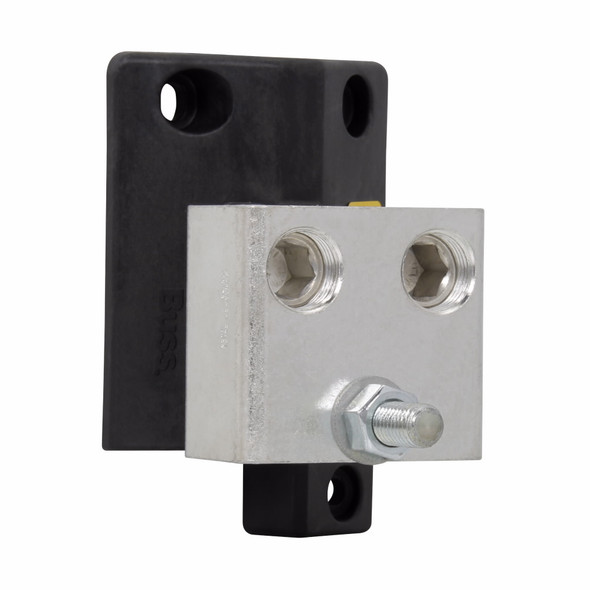

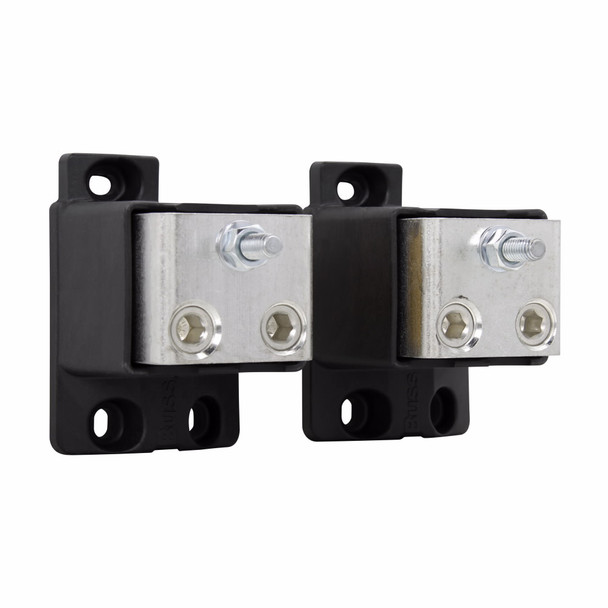

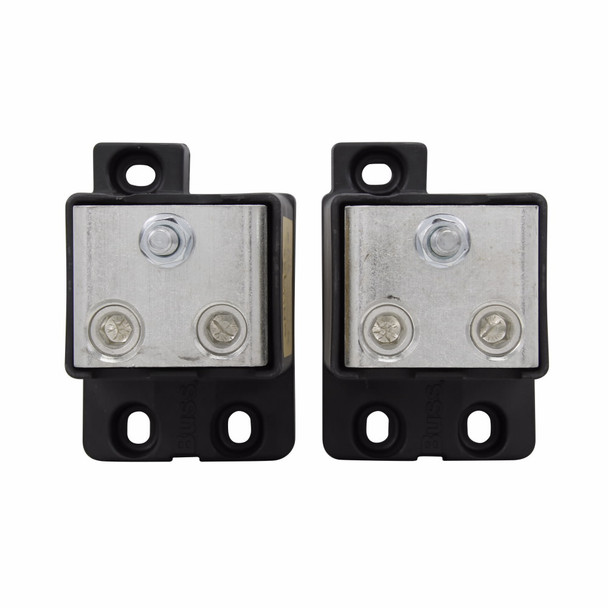

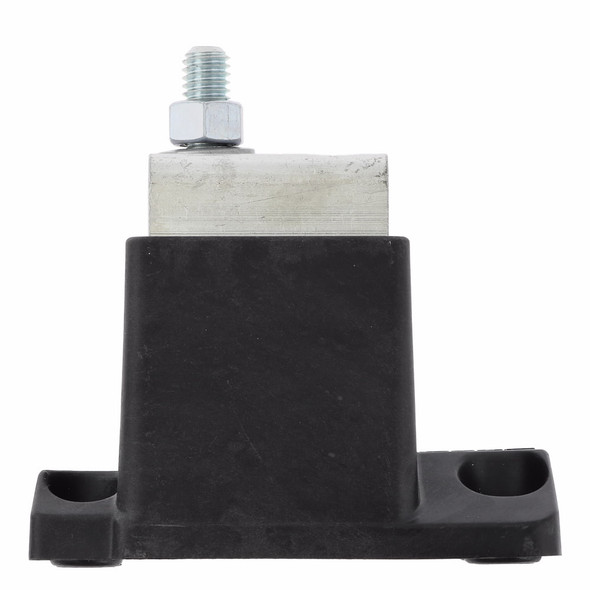

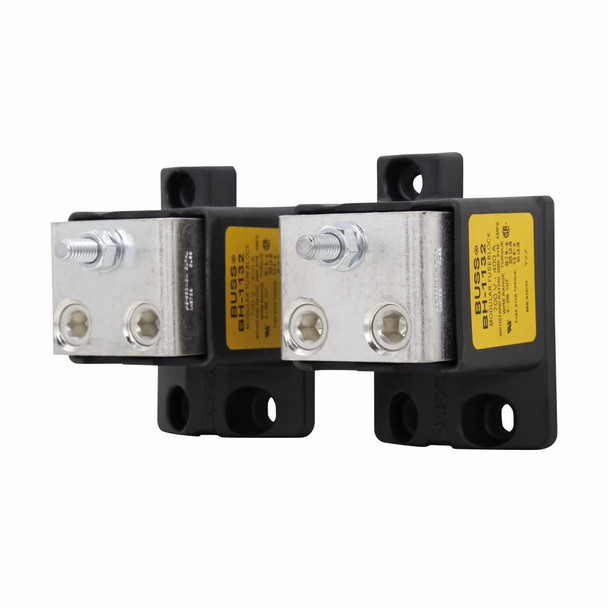

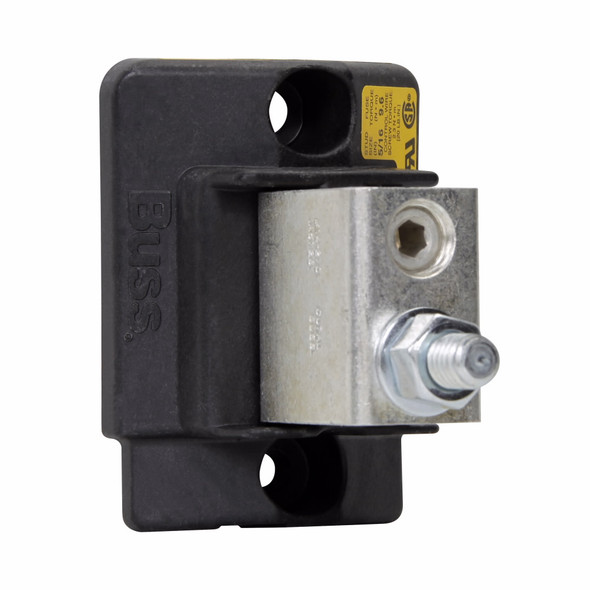

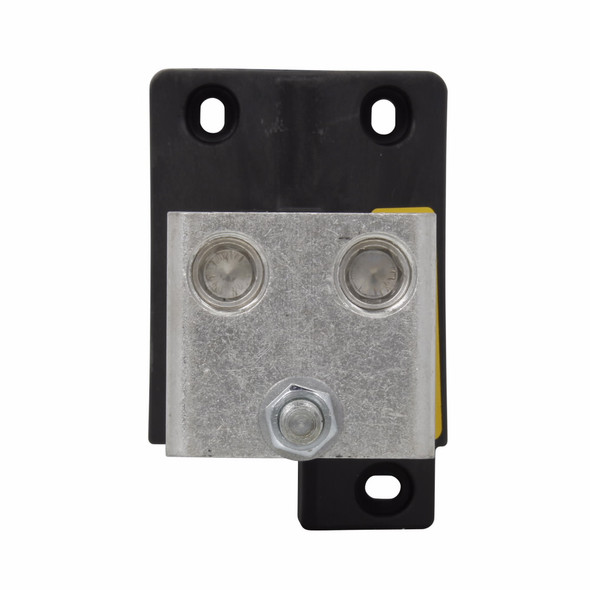

Bussmann BH-1132 Fuse Block
Bussmann High Speed Fuse Block, Modular Square, Series: BH Series, 0 to 2500 V, 0 to 400 A, 1 Pole, Stud, 6 AWG to 250 kcmil Wire, For Use With: Semiconductor and High Speed Fuse, Thermoplastic, 3.93 in L x 2.63 in W x 3.92 in H
Additional Description: BUSS-BH-1132 MODULAR BLOCK
Catalog Description: Fuse Block, Modular, 0-400A, 0-2500V, High temperature thermoplastic material, 5/16 in-18 TPI stud connection, 6 AWG to 250 MCM (copper) wire size
Specifications
| UNSPSC | 39121624 |
|---|---|
| Amperage Rating | 0 to 400 |
| Amperage Rating | 0 to 400 A |
| Connection type | 5/6-18 Stud |
| Connection type | Stud |
| Connection type | Stud Terminal |
| Dimensions | 3.93 in L x 2.63 in W x 3.92 in H |
| Dimensions | 8.23 in L x 2.12 in W x 2.68 in H |
| Material | Thermoplastic |
| Mounting type | Chassis |
| Number of Poles | 1 |
| Series | BH Series |
| Series | BH-1 |
| Suitable For Use With | Bussmann High Speed Fuse |
| Suitable For Use With | Semiconductor and High Speed Fuse |
| Suitable For Use With | Semiconductor, High Speed Fuse |
| Type | 2-Hole Lightweight Modular |
| Type | High Speed Modular |
| Type | Modular Square |
| Voltage Rating | 0 to 2500 |
| Voltage Rating | 0 to 2500 V |
| Wire Size | 6 AWG to 250 kcmil |
