Description

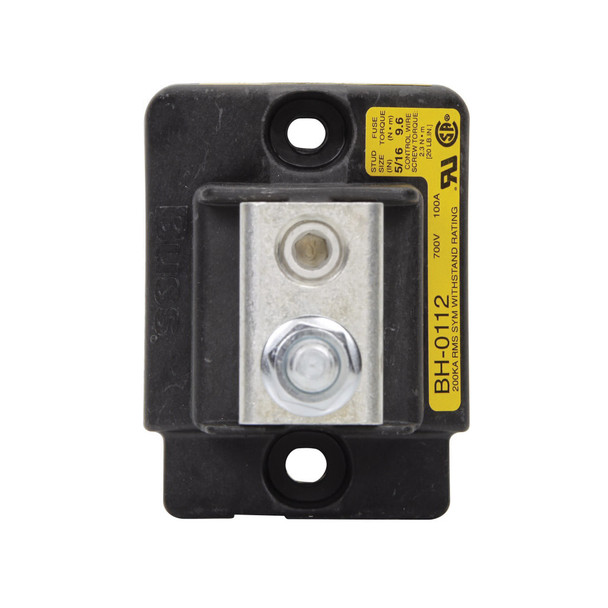

Bussmann BH-0112
Bussmann Fuse Block, Modular, Series: BH Series, 0 to 700 V, 0 to 100 A, 1 Pole, Stud, 14 to 2/0 AWG Wire, For Use With: Semiconductor and High Speed Fuse, Thermoplastic
Additional Description: BUSS-BH-0112 MODULAR BLOCK
Catalog Description: Eaton Bussmann series modular fuse block, Solid State Control Circuits, VFDs, UPS Systems, 0-100 A, 5/16 inches - 18 TPI stud, High temperature thermoplastic, 0-700 V, #14-2/0 AWG Cu
Specifications
| UNSPSC | 39121624 |
|---|---|
| Amperage Rating | 35 to 100 A |
| Connection type | 5/6-18 Stud |
| Dimensions | 2.81 in L x 2.12 in W x 2.68 in H |
| Material | High Temperature Thermoplastic |
| Mounting type | Chassis |
| Number of Poles | 1 |
| Series | BH-0 Series |
| Suitable For Use With | Bussmann High Speed Fuse |
| Type | High Speed Modular |
| Voltage Rating | 250 to 700 V |
| Wire Size | 14 to 2/0 AWG |
