Description

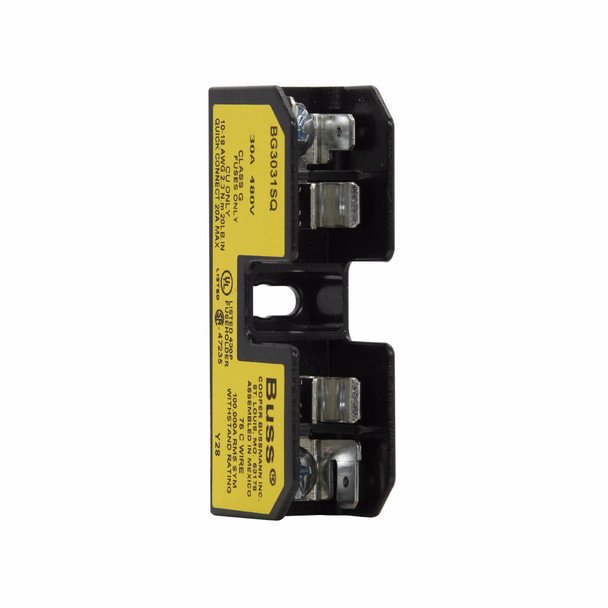

Bussmann BG3031SQ Power Fuse Block
Bussmann Fuse Block, Open, Series: BG Series, 480 V, 25 to 30 A, 1 Pole, Class: G, Screw, 14 to 10 AWG Wire, DIN Rail Mount, 130 deg C, For Use With: SC Series Class G Fuse, Thermoplastic, 0.86 in L x 3 in W x 1.22 in H
Additional Description: BUSS-BG3031SQ FUSEBLOCK CLASS G
Catalog Description: Eaton Bussmann series BG open fuse block, 25-30 A, Class G, Screw, 100 kAIC, Thermoplastic, 480 V, #14-10 AWG Cu
Specifications
| UNSPSC | 39121624 |
|---|---|
| Amperage Rating | 25 to 30 |
| Amperage Rating | 25 to 30 A |
| Class | G |
| Connection type | Screw |
| Dimensions | 0.86 in L x 3 in W x 1.22 in H |
| Material | Thermoplastic |
| Mounting type | DIN Rail |
| Number of Poles | 1 |
| Series | BG Series |
| Suitable For Use With | SC Series Class G Fuse |
| Temperature Rating (Degrees F) | 130 deg C |
| Type | Open |
| Voltage Rating | 480 |
| Voltage Rating | 480 V |
| Wire Size | 14 to 10 AWG |
| Wire Size | 14 to 10 AWG Copper |
