Description

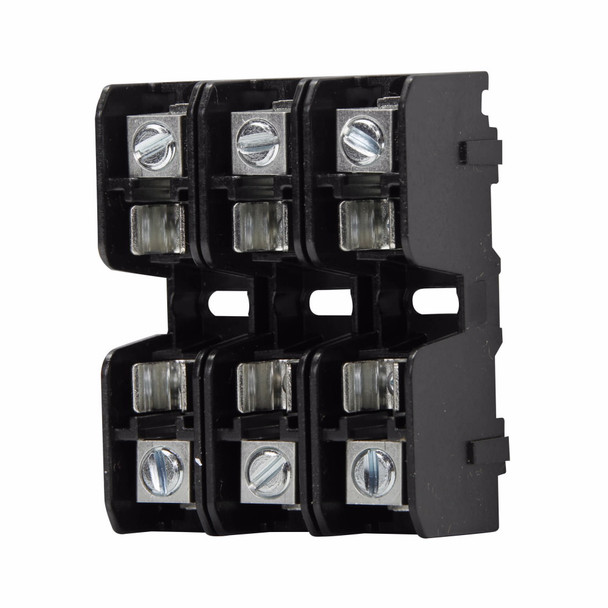

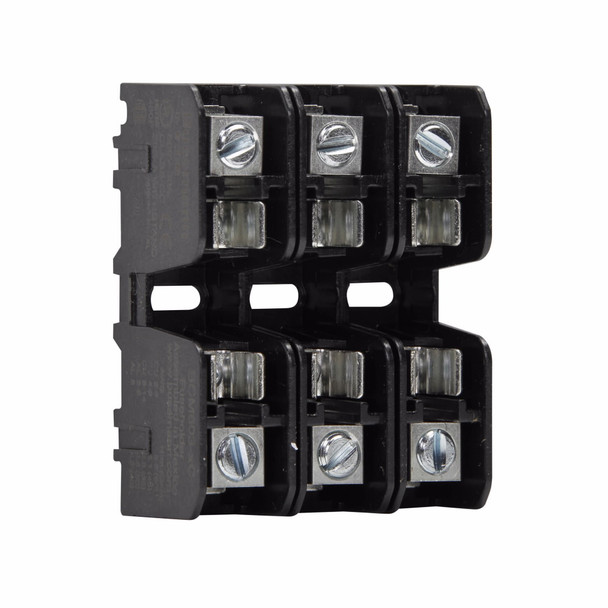

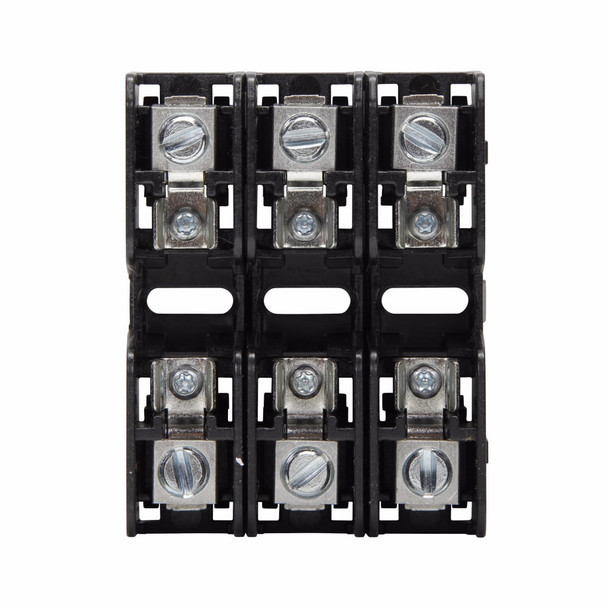

Bussmann BCM603-3C Fuse Block
Bussmann Fuse Block, Modular, Series: BCM, 600 VAC, 30 A, 3 Pole, Class: CC, Box Lug/Wired, 14 to 2 AWG, 8 to 2 AWG Wire, DIN Rail/Panel Mount, -40 to 120 deg C, For Use With: Low-Peak LP-CC Series Time Delay, Limitron FNQ-R Series Time Delay, Limitron KTK-R Series Fast Acting Fuse, Thermoplastic, 3 in L x 2.4 in W x 1.3 in H
Additional Description: BUSS-BCM603-3C CC FUSE BLOCK W/ WIRE CONNECTOR 3 POLE
Catalog Description: Eaton Bussmann series BCM modular fuse block, Box lug, Three-pole
Specifications
| UNSPSC | 39121624 |
|---|---|
| Amperage Rating | 30 |
| Amperage Rating | 30 A |
| Class | CC |
| Connection type | Box Lug |
| Connection type | Box Lug/Wired |
| Dimensions | 3 in L x 2.4 in W x 1.3 in H |
| Material | Thermoplastic |
| Mounting type | DIN Rail/Panel |
| Number of Poles | 3 |
| Series | BCM |
| Suitable For Use With | Low-Peak LP-CC Series Time Delay, Limitron FNQ-R Series Time Delay, Limitron KTK-R Series Fast Acting Fuse |
| Suitable For Use With | Low-Peak™ LP-CC Series Time Delay, Limitron™ FNQ-R Series Time Delay, Limitron™ KTK-R Series Fast Acting Fuse |
| Suitable For Use With | Time Delay Low-Peak™ LP-CC, Time Delay Limitron™ FNQ-R, Fast Acting Limitron™ KTK-R Series Fuse |
| Temperature Rating (Degrees F) | -40 to 120 |
| Temperature Rating (Degrees F) | -40 to 120 deg C |
| Type | Modular |
| Voltage Rating | 600 |
| Voltage Rating | 600 VAC |
| Wire Size | 14 to 2 AWG, 8 to 2 AWG |
