Description

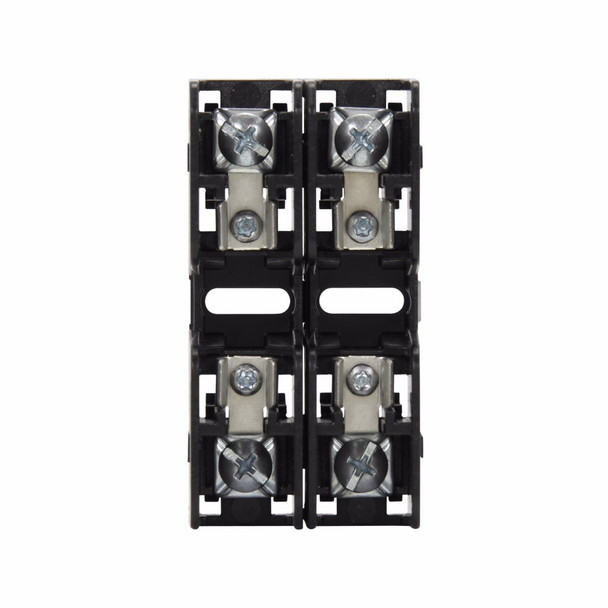

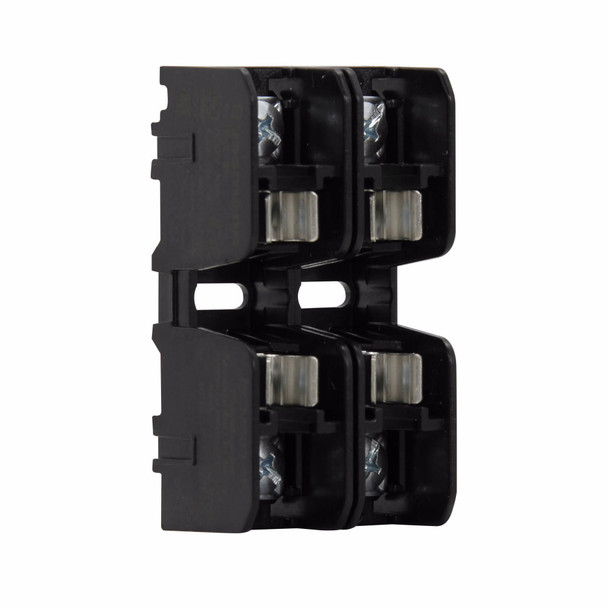

Bussmann BCM603-2P UL Class Power Fuse Block
Bussmann Fuse Block, Modular, Series: BCM, 2 Pole, Class: CC, DIN Rail/Panel Mount, -40 to 120 deg C, Thermoplastic
Additional Description: BUSS-BCM603-2P CC FUSE BLOCK W/ PRESSURE PLATE 2 POLE
Catalog Description: Eaton Bussmann series BCM modular fuse block, Pressure plate, Two-pole
Specifications
| UNSPSC | 39121624 |
|---|---|
| Amperage Rating | 30 |
| Class | CC |
| Dimensions | 3.03 in L x 1.58 in W x 1.3 in H |
| Material | Thermoplastic |
| Mounting type | DIN Rail/Panel |
| Mounting type | Panel |
| Number of Poles | 2 |
| Series | BC Series |
| Series | BCM |
| Temperature Rating (Degrees F) | -40 to 120 |
| Temperature Rating (Degrees F) | -40 to 120 deg C |
| Type | Modular |
| Voltage Rating | 600 |
