Description

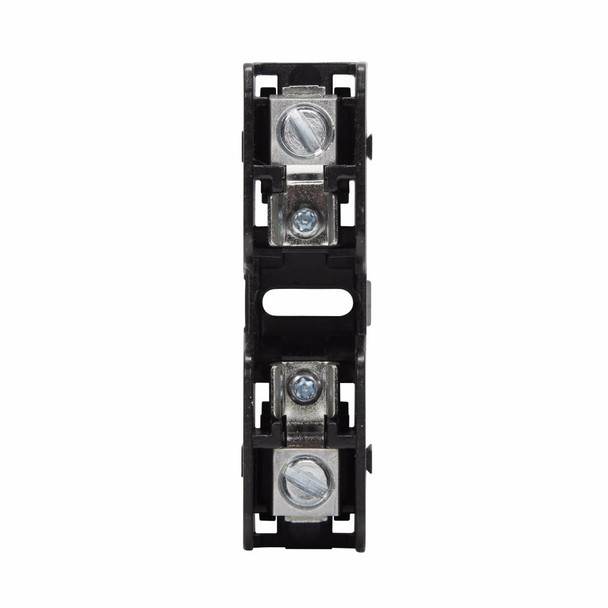

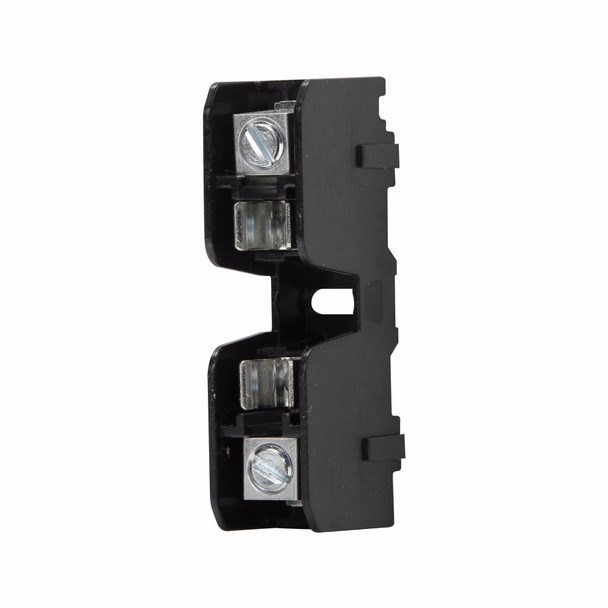

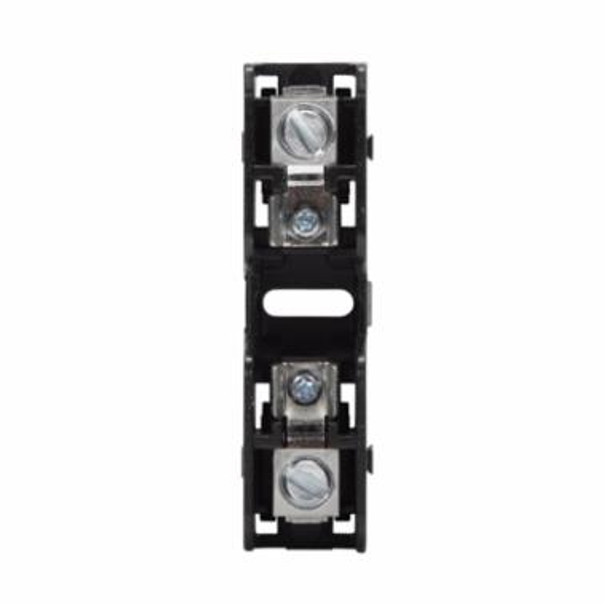

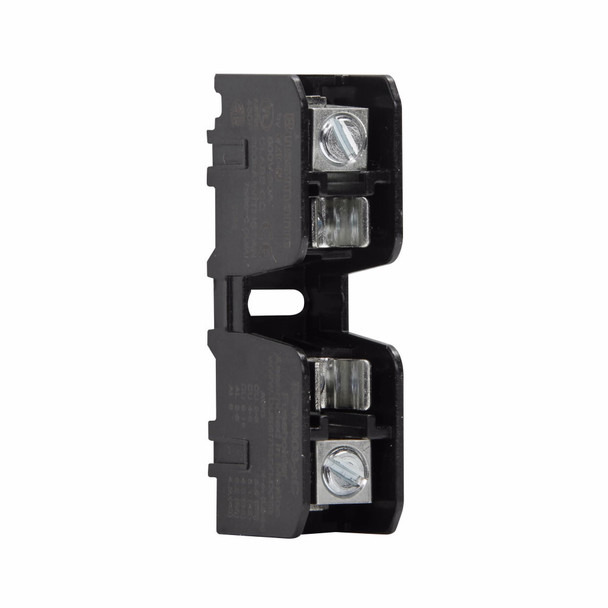

Bussmann BCM603-1C Fuse Block
Bussmann Fuse Block, Modular, Series: BCM, 600 VAC/VDC, 0 to 30 A, 1 Pole, Class: CC, Box Lug/Wired, 14 to 2 AWG Wire, DIN Rail Mount, 1-1/2 in Fuse Length, 13/32 in Fuse Dia, -40 to 120 deg C, For Use With: KTK-R, FNQ-R, LP-CC Series Fuse, Thermoplastic, 3 in L x 0.8 in W x 1.3 in H
Additional Description: BUSS-BCM603-1C CC FUSE BLOCK W/ WIRE CONNECTOR 1 POLE
Catalog Description: Eaton Bussmann series BCM modular fuse block, Box lug, Single-pole
Specifications
| UNSPSC | 39121629 |
|---|---|
| Amperage Rating | 0 to 30 |
| Amperage Rating | 0 to 30 A |
| Amperage Rating | 30 |
| Class | CC |
| Connection type | Box Lug |
| Connection type | Box Lug/Wired |
| Connection type | Wire |
| Dimensions | 3 in L x 0.8 in W x 1.3 in H |
| Dimensions | 3.03 in L x 0.83 in W x 1.3 in H |
| Fuse Diameter | 13/32 |
| Fuse Diameter | 13/32 in |
| Fuse Length | 1-1/2 |
| Fuse Length | 1-1/2 in |
| Material | Thermoplastic |
| Mounting type | DIN Rail |
| Mounting type | Panel |
| Number of Poles | 1 |
| Series | BC Series |
| Series | BCM |
| Suitable For Use With | FNQ-R,KTK-R,LP-CC Fuse |
| Suitable For Use With | KTK-R, FNQ-R, LP-CC Series Fuse |
| Temperature Rating (Degrees F) | -40 to 120 |
| Temperature Rating (Degrees F) | -40 to 120 deg C |
| Type | Modular |
| Voltage Rating | 600 |
| Voltage Rating | 600 VAC/VDC |
| Wire Size | 14 to 2 |
| Wire Size | 14 to 2 AWG |
