Description

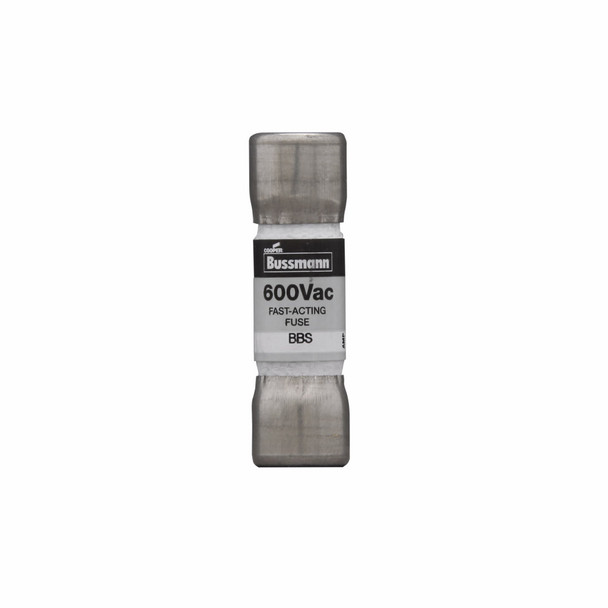

Bussmann BBS-1/2 Midget Fuse
Bussmann Midget Fuse, Fast Acting, Series: BBS, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 1/2 A, 600 VAC, 10000 A Interrupt, Class: Supplemental, Ferrule Terminal, Holder Mount, Cartridge Body Type, Single Element, Brass/Fiberglass, Black, 13/32 in Dia x 1-3/8 in L Body Size
Additional Description: BUSS-BBS-1/2 BUSS MIDGET FUSE FAST ACTING
Catalog Description: Eaton Bussmann series BBS fuse, 0.5 A, Non-indicating, Ferrule end x ferrule end, 10 kAIC at 600 Vac, Nickel-plated brass endcaps, Standard, 600 V
Specifications
| UNSPSC | 39121609 |
|---|---|
| Amperage Rating | 1/2 |
| Amperage Rating | 1/2 A |
| Body Type | Cartridge |
| Class | CC/Supplemental |
| Class | Supplemental |
| Color | Black |
| Indicating/Non-Indicating | Non-Indicating |
| Interrupt Rating | 10 |
| Interrupt Rating | 10000 A |
| Material | Brass/Fiberglass |
| Material | Fiber Tube |
| Mounting type | Holder |
| Rejection/Non-Rejection | Non-Rejection |
| Series | BBS |
| Terminal Type | Ferrule |
| Type | Fast Acting |
| Voltage Rating | 600 |
| Voltage Rating | 600 VAC |
