Description

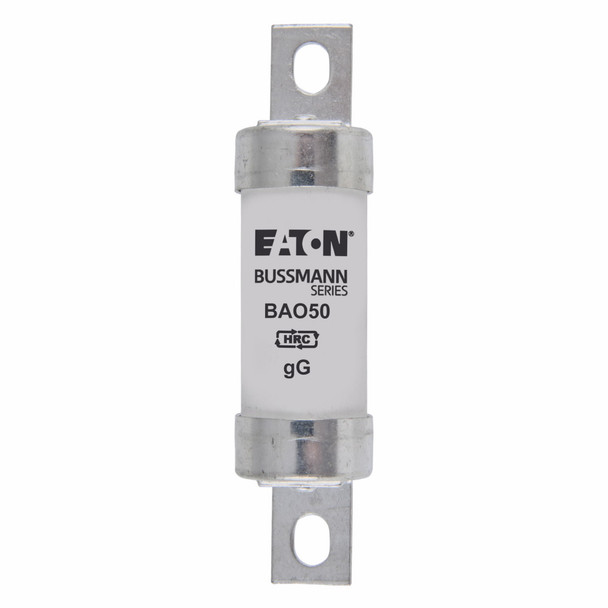

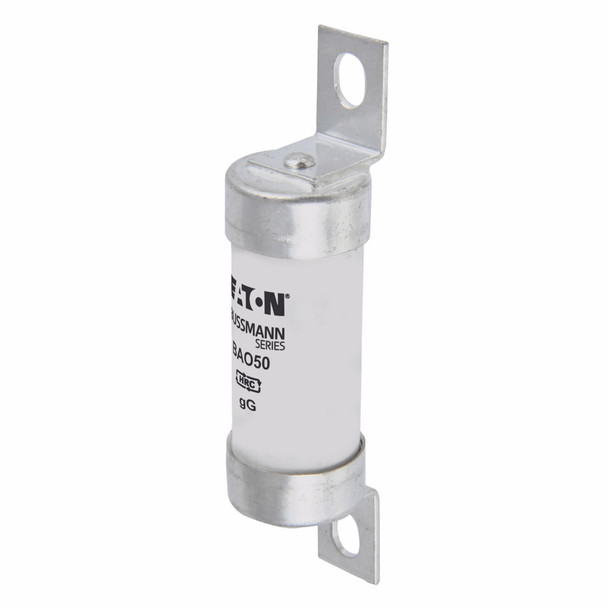

Bussmann BAO50 HRC Fuse Link
Bussmann Fuse Link, Low Voltage Non-Indicating, Series: BA, 500 V, 50 A, Rated Breaking Capacity: 80 kAIC, Stud Mount, For Use With: Class C/gG/gL Fuse, 21 mm Dia x 87 mm L
Additional Description: BUSS-BAO50 50AMP 500V AC BS88 gG FUSE
Catalog Description: Fuse-link, LV, 50 A, AC 500 V, BS88/A3, 21 x 87 mm, gL/gG, BS
Specifications
| UNSPSC | 39121626 |
|---|---|
| Amperage Rating | 50 |
| Amperage Rating | 50 A |
| Dimensions | 21 mm Dia x 87 mm L |
| Dimensions | 87 mm W x 22 mm D x 21 mm H |
| Indicating/Non-Indicating | Non-Indicating |
| Material | Ceramic |
| Mounting type | Stud |
| Rated Breaking Capacity | 80 |
| Rated Breaking Capacity | 80 kAIC |
| Series | BA |
| Series | BAO |
| Suitable For Use With | Class C/gG/gL Fuse |
| Type | Low Voltage Non-Indicating |
| Type | Offset Bolted Tag Low Voltage |
| Voltage Rating | 500 |
| Voltage Rating | 500 V |
