Description

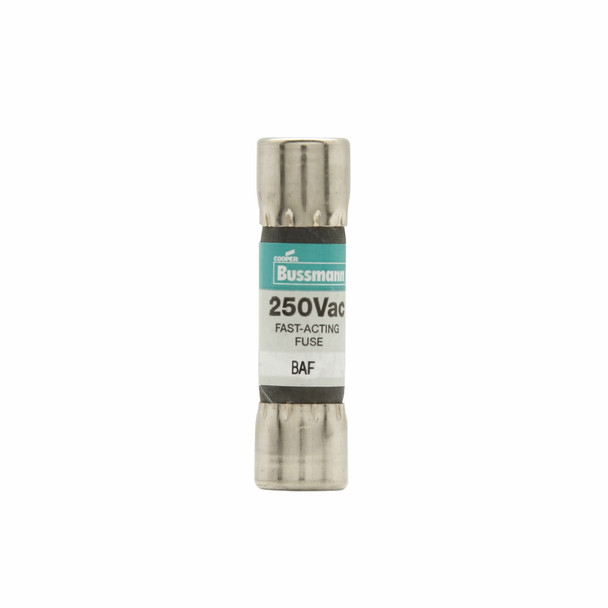

Bussmann BAF-2 Fast Acting Fuse
Bussmann Fuse, Fast Acting Low Voltage Supplemental, Series: BAF, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 2 A, 250 VAC, 100 A Interrupt, Class: Supplemental, Ferrule Terminal, Holder Mount, Cartridge Body Type, Single Element, Brass/Fiberglass, Green, 13/32 in Dia x 1-1/2 in L Body Size
Additional Description: BUSS-BAF-2 BUSS MIDGET FUSE
Catalog Description: Eaton Bussmann series BAF fuse, Fast acting Midget fuse, 2 A, Non-indicating, Ferrule end x ferrule end, 10 kAIC at 125 Vac,100 AIC at 250 Vac, Nickel-plated brass endcaps, Standard, 250 V
Specifications
| UNSPSC | 39121609 |
|---|---|
| Amperage Rating | 2 |
| Amperage Rating | 2 A |
| Body Type | Cartridge |
| Class | CC |
| Class | Supplemental |
| Color | Green |
| Indicating/Non-Indicating | Non-Indicating |
| Interrupt Rating | 100 A |
| Interrupt Rating | 100 A, 10 kA |
| Material | Brass/Fiberglass |
| Material | Fiberglass |
| Mounting type | Holder |
| Rejection/Non-Rejection | Non-Rejection |
| Series | BAF |
| Terminal Type | Ferrule |
| Type | Fast Acting Low Voltage Supplemental |
| Type | Low Voltage Supplemental |
| Voltage Rating | 250 |
| Voltage Rating | 250 VAC |
