Description

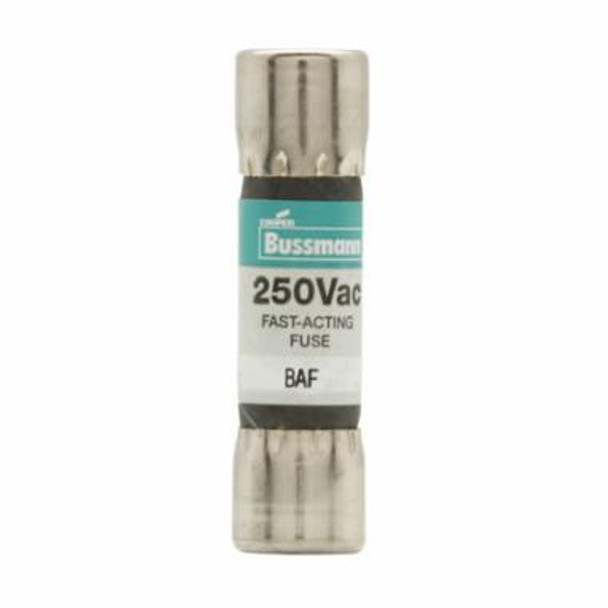

Bussmann BAF-12 Midget Fuse
Bussmann Midget Fuse, Fast Acting Low Voltage Supplemental, Series: BAF, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 12 A, 250 VAC, 750 A Interrupt, Class: Supplemental, Ferrule Terminal, Holder Mount, Cartridge Body Type, Single Element, Brass/Fiberglass, 13/32 in Dia x 1-1/2 in L Body Size
Additional Description: BUSS-BAF-12 BUSS MIDGET FUSE
Catalog Description: Eaton Bussmann series BAF fuse, Fast acting Midget fuse, 12 A, Non-indicating, Ferrule end x ferrule end, 10 kAIC at 125 Vac,750 AIC at 250 Vac, Nickel-plated brass endcaps, Standard, 250 V
Specifications
| UNSPSC | 39121609 |
|---|---|
| Amperage Rating | 12 |
| Amperage Rating | 12 A |
| Body Type | Cartridge |
| Class | Midget |
| Class | Supplemental |
| Indicating/Non-Indicating | Non-Indicating |
| Interrupt Rating | 75 |
| Interrupt Rating | 750 A |
| Material | Brass/Fiberglass |
| Material | Fiber |
| Mounting type | Holder |
| Rejection/Non-Rejection | Non-Rejection |
| Series | BAF |
| Terminal Type | Ferrule |
| Type | Fast Acting Low Voltage Supplemental |
| Voltage Rating | 250 |
| Voltage Rating | 250 VAC |
