Description

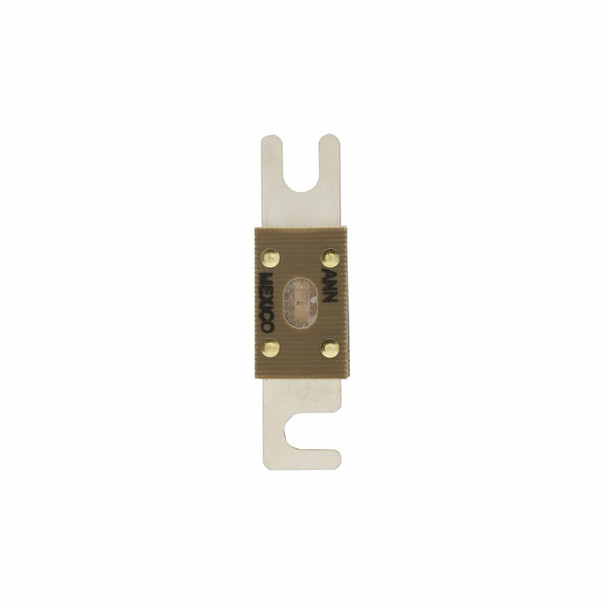

Bussmann ANN-125 Fuse Limiter
Bussmann Circuit Limiter, Non-Indicating Very Fast Acting, Series: ANN, 125 A, 125 VAC/80 VDC, 2.5/2.7 kAIC Interrupt, Bolted-Down Terminal, Stud Mount, Flat Body, Single Element, Melamine, 3-3/16 in L x 7/8 in W Body Size
Additional Description: BUSS-ANN-125 ANN VERY FAST ACTING LIMITER - 125 AMP
Catalog Description: Eaton Bussmann series ANN circuit limiter, 125 A, 2.5 kaIC at 125 Vac, 2.7 kaIC at 80 Vdc, Blade end X blade end, Stud, Non indicating
Specifications
| UNSPSC | 39121626 |
|---|---|
| Amperage Rating | 125 A |
| Body Type | Flat |
| Indicating/Non-Indicating | Indicating |
| Indicating/Non-Indicating | Non-Indicating |
| Interrupt Rating | 2.5/2.7 |
| Interrupt Rating | 2.5/2.7 kAIC |
| Material | Glass/Melamine |
| Material | Melamine |
| Mounting type | Stud |
| Series | ANN |
| Terminal Type | Blade |
| Terminal Type | Bolted-Down |
| Type | Circuit Limiting |
| Type | Non-Indicating Very Fast Acting |
| Voltage Rating | 125 VAC, 80 VDC |
| Voltage Rating | 125 VAC/80 VDC |
