Description

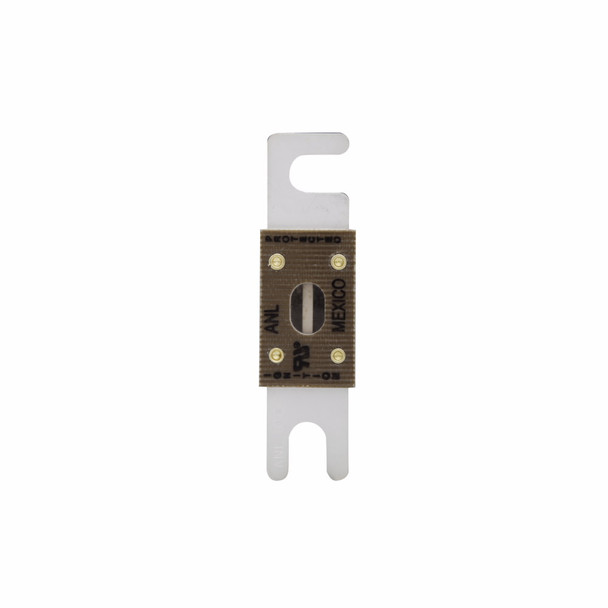

Bussmann ANL-175
Bussmann Circuit Limiter Fuse, Fast Acting Low Voltage Non-Time Delay Non-Indicating, Series: ANL, 175 A, 32 VAC/80 VDC, 6/2.7 kAIC Interrupt, Bolted-Down Terminal, Stud Mount, Flat Body, Single Element, Melamine, 3-3/16 in L x 7/8 in W Body Size
Additional Description: BUSS-ANL-175 ANL CURRENT LIMITER FUSE - 175 AMP
Catalog Description: Eaton Bussmann series ANL circuit limiter, 175 A, 6 kAIC at 32 Vac, 2.7 kAIC at 80 Vdc, Blade end X blade end, Non indicating
Specifications
| UNSPSC | 39121626 |
|---|---|
| Amperage Rating | 175 A |
| Body Type | Flat |
| Interrupt Rating | 6/2.7 kAIC |
| Material | Melamine |
| Mounting type | Stud |
| Series | ANL |
| Terminal Type | Bolted-Down |
| Type | Fast Acting Low Voltage Non-Time Delay Non-Indicating |
| Voltage Rating | 32 VAC/80 VDC |
