Description

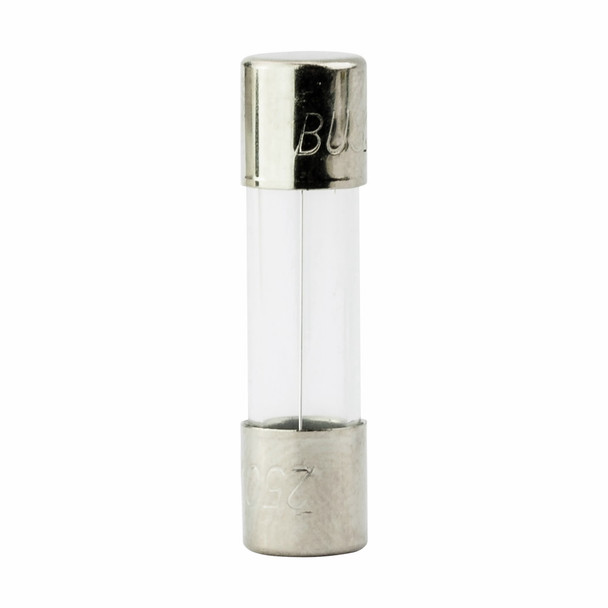

Bussmann AGX-2 Fast Acting Fuse
Bussmann Fast Acting Fuse, Small Dimension, Series: AGX, Non-Indicating, Rejection, 2 A, 250 VAC, 100 A, 10 kA Interrupt, 4 hr, 60 min, 5 s Response, Ferrule Terminal, Holder Mounting, Cylindrical Body, Single Element, Glass, 1/4 in Dia x 1 in L Body
Additional Description: BUSS-AGX-2 AGX GLASS FUSE - 1/4 x 1"" - 2 AMP"" ACTING FUS
Catalog Description: Eaton AGX Series Fast-acting fuse 2A, 250 Vac, 32 Vdc
Specifications
| UNSPSC | 39121607 |
|---|---|
| Amperage Rating | 2 |
| Amperage Rating | 2 A |
| Body Type | Cylindrical |
| Indicating/Non-Indicating | Non-Indicating |
| Interrupt Rating | 100 A, 10 kA |
| Material | Glass |
| Mounting type | Holder |
| Rejection/Non-Rejection | Rejection |
| Response Time | 4 hr, 60 min, 5 s |
| Series | AGX |
| Terminal Type | Ferrule |
| Type | Small Dimension |
| Voltage Rating | 250 |
| Voltage Rating | 250 VAC |
