Description

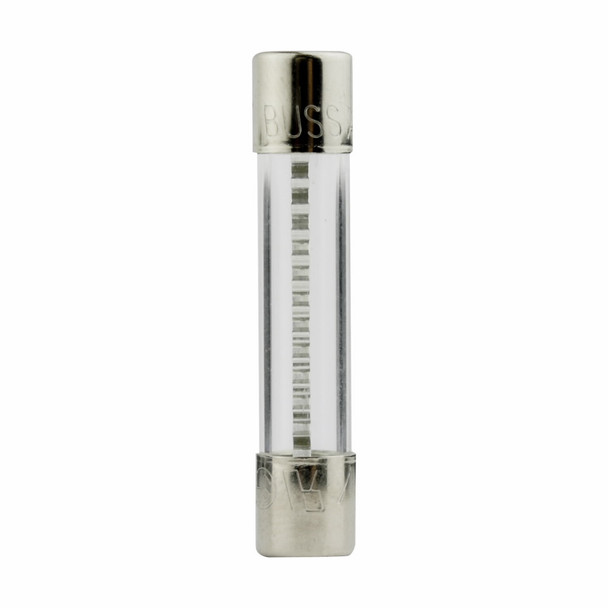

Bussmann AGC-30-R Fast Acting Fuse
Bussmann Fast Acting Fuse, Small Dimension, Series: AGC, Non-Indicating, Non-Rejection, 30 A, 32 VAC, 1 kA Interrupt, 60 min, 120 s Response, Ferrule Terminal, Holder Mounting, Cylindrical Body, Single Element, Glass, 1/4 in Dia x 1-1/4 in L Body
Additional Description: BUSS-AGC-30-R BUSS SMALL DIMENSION FUSE
Catalog Description: Eaton AGC series Fast-acting fuse 30A, 32 Vac, 32 Vdc (self certified), AGC-30-R
Specifications
| UNSPSC | 39121607 |
|---|---|
| Amperage Rating | 30 |
| Amperage Rating | 30 A |
| Body Type | Cylindrical |
| Indicating/Non-Indicating | Non-Indicating |
| Interrupt Rating | 1 |
| Interrupt Rating | 1 kA |
| Material | Glass |
| Mounting type | Holder |
| Rejection/Non-Rejection | Non-Rejection |
| Response Time | 60 min, 120 s |
| Series | AGC |
| Terminal Type | Ferrule |
| Type | Small Dimension |
| Voltage Rating | 32 |
| Voltage Rating | 32 VAC |
