Description

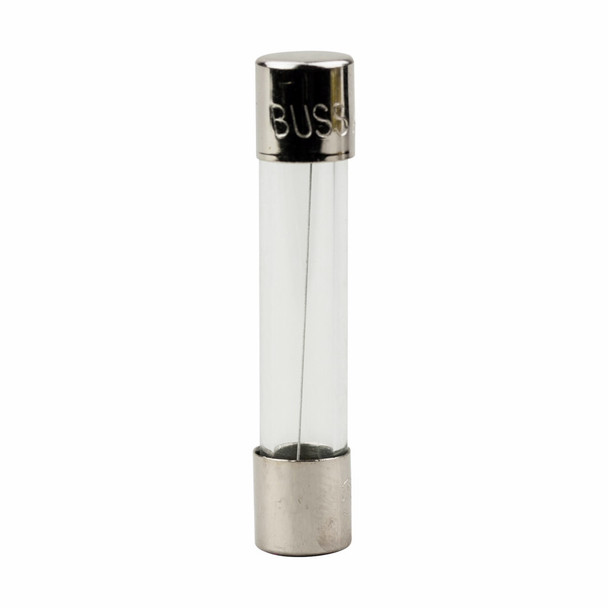

Bussmann AGC-1-1/4-R Fast Acting Fuse
Bussmann Fast Acting Fuse, Small Dimension, Series: AGC, Non-Indicating, Non-Rejection, 1-1/4 A, 250 VAC, 100 A, 10 kA Interrupt, 60 min, 120 s Response, Ferrule Terminal, Holder Mounting, Cylindrical Body, Single Element, Glass, 1/4 in Dia x 1-1/4 in L Body
Additional Description: BUSS-AGC-1-1/4-R BUSS SMALL DIMENSION FUSE
Catalog Description: Eaton AGC series Fast-acting fuse 1.25A, 250 Vac, 32 Vdc (self certified), AGC-1-1-4-R
Specifications
| UNSPSC | 39121607 |
|---|---|
| Amperage Rating | 1-1/4 |
| Amperage Rating | 1-1/4 A |
| Body Type | Cylindrical |
| Indicating/Non-Indicating | Non-Indicating |
| Interrupt Rating | 100 A, 10 kA |
| Material | Glass |
| Mounting type | Holder |
| Rejection/Non-Rejection | Non-Rejection |
| Response Time | 60 min, 120 s |
| Series | AGC |
| Terminal Type | Ferrule |
| Type | Small Dimension |
| Voltage Rating | 250 |
| Voltage Rating | 250 VAC |
