Description

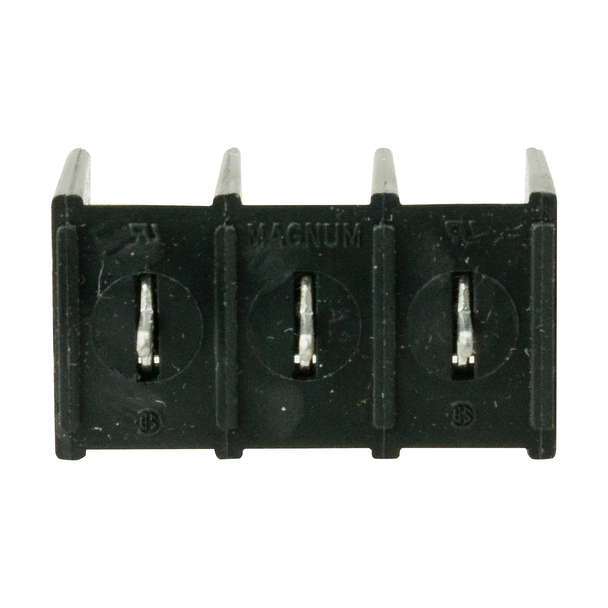

Bussmann A20221509 Terminal Block Strips and Barrier Block
Bussmann Terminal Block Strips and Barrier Block, Standard Barrier, 300 VAC, 30 A, 22 to 12 AWG Wire, 3/8 in Center Spacing, 9 in-lb Torque, Surface Mounting, #6 to 32 TPI Screw, Hand Wired Connection, -40 to 105 deg C, Molded Thermoplastic, Black, 5.68 in L x 0.65 in W Dimensions
Additional Description: UNDR-A20221509 (N) MAGNUM 2000 SERIES NON-CANCELABLE, NON-RETURNABLE
Catalog Description: 30AMP 300V 15PL SGL ROW TERM BLCK
Specifications
| UNSPSC | 39121410 |
|---|---|
| Amperage Rating | 30 |
| Amperage Rating | 30 A |
| Color | Black |
| Connection type | #6 to 32 TPI Screw, Hand Wired |
| Connection type | 6 to 32 TPI Screw/Hand Wired |
| Dimensions | 5.68 in L x 0.65 in W |
| Material | Molded Thermoplastic |
| Mounting type | Surface |
| Temperature Rating (Degrees F) | -40 to 105 |
| Temperature Rating (Degrees F) | -40 to 105 deg C |
| Torque Rating | 9 |
| Torque Rating | 9 in-lb |
| Type | Standard Barrier |
| Voltage Rating | 300 |
| Voltage Rating | 300 VAC |
| Wire Size | 22 to 12 |
| Wire Size | 22 to 12 AWG |
