Description

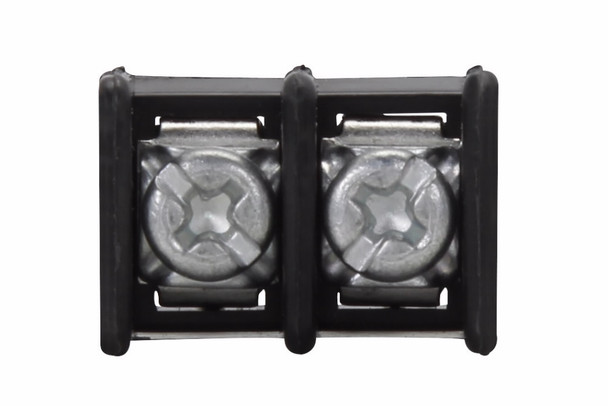

Bussmann A10220507 Terminal Block Strips and Barrier Block
Bussmann Terminal Block Strips and Barrier Block, Standard Barrier, 250 VAC, 20 A, 22 to 14 AWG Wire, 0.325 in Center Spacing, 9 in-lb Torque, 6 to 32 TPI Screw/Printed Circuit/0.187 in Quick Connect Connection, -40 to 105 deg C, Molded Thermoplastic, Black, 1.69 in L x 0.5 in W Dimensions
Additional Description: BUSS-A10220507 MAGNUM 1000 SERIES
Catalog Description: 20AMP 250V 5PL SGL ROW TERM BLCK
Specifications
| UNSPSC | 39121410 |
|---|---|
| Amperage Rating | 20 A |
| Color | Black |
| Connection type | 6 to 32 TPI Screw/Printed Circuit/0.187 in Quick Connect |
| Dimensions | 1.69 in L x 0.5 in W |
| Material | Molded Thermoplastic |
| Temperature Rating (Degrees F) | -40 to 105 deg C |
| Torque Rating | 9 in-lb |
| Type | Standard Barrier |
| Voltage Rating | 250 VAC |
| Wire Size | 22 to 14 AWG |
