Description

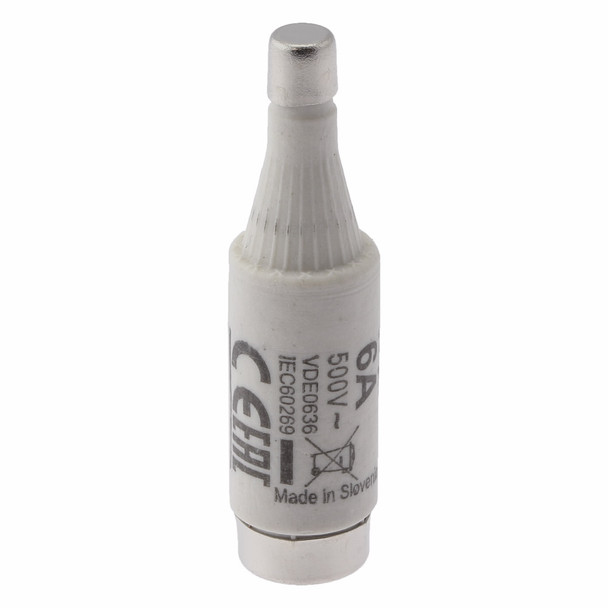

Bussmann 6D16
Additional Description: BUSS-6D16 FUSE-D1 6A T GL/GG 500VAC E16 DELAY,500V,6A
Catalog Description: Eaton Bussmann series low voltage D fuse, Time-delay, 500V, 6A, 50 kAIC, Non Indicating, fuse, Class C gL/gG, Time delay, Holder, Green, Ceramic body
Specifications
| UNSPSC | 39121626 |
|---|---|
| Amperage Rating | 6 |
| Amperage Rating | 6 A |
| Body Type | Round |
| Class | gG/gL |
| Class | GL/GG/C |
| Color | Green |
| Dimensions | 13.2 mm Dia x 50 mm L |
| Indicating/Non-Indicating | Non-Indicating |
| Interrupt Rating | 100 kA |
| Material | Ceramic |
| Mounting type | DIN Rail/Panel |
| Mounting type | Holder |
| Power Rating | 1.8 |
| Rated Breaking Capacity | 50 |
| Suitable For Use With | E16/DI Size Screw Cap/Fuse |
| Terminal Type | Cartridge |
| Type | Type D Low Voltage Time Delay |
| Voltage Rating | 500 |
| Voltage Rating | 500 V |
| Voltage Rating | 500 VAC |
