Description

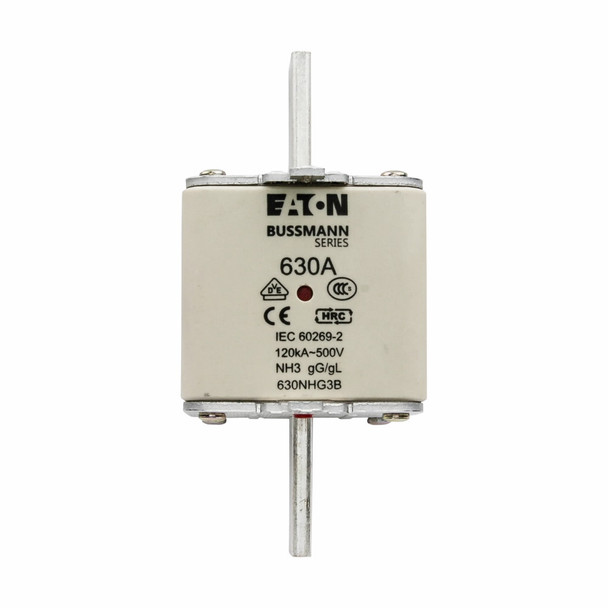

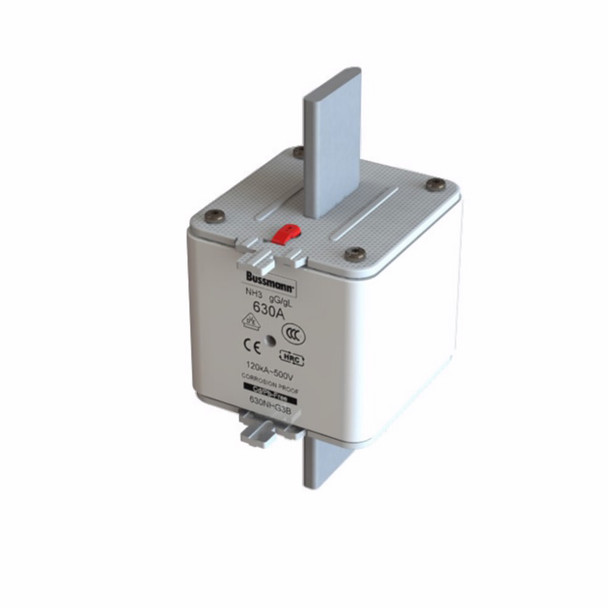

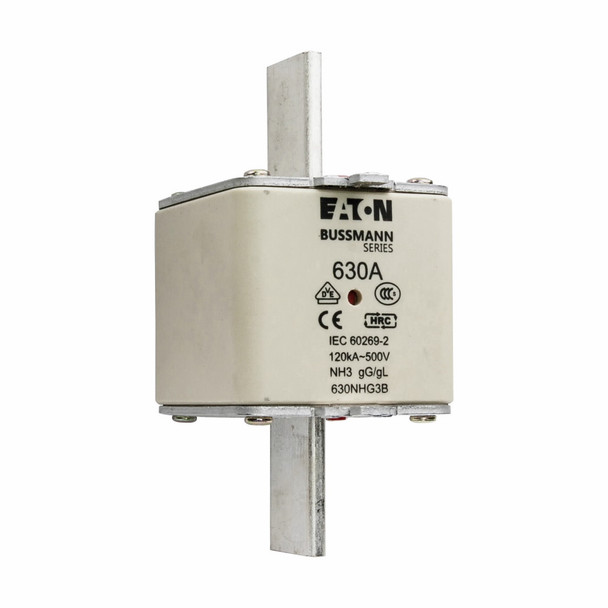

Bussmann 630NHG3B Fuse Link
Bussmann NH Fuse Link, Dual Indicator Low Voltage Size 03, Series: NHG, 500 V, 630 A, 45 to 62 Hz Frequency, Rated Breaking Capacity: 120 kA, Holder Mounting, For Use With: Class C gG/gL Fuse, Ceramic, 150 mm L x 70 mm W Dimensions
Additional Description: BUSS-630NHG3B NH FUSE 630A 500V GG/GL SIZE 3
Catalog Description: Eaton Bussmann series low voltage NH Fuse, Live gripping lug, 500V, 630A, 120 kAIC, Combination fuse status indicator, fuse, Blade end connection, Class C gL/gG, Square-body with knife blade contact, Ceramic body
Specifications
| UNSPSC | 39121626 |
|---|---|
| Amperage Rating | 630 |
| Amperage Rating | 630 A |
| Dimensions | 150 mm L x 70 mm W |
| Dimensions | 71.2 mm D x 150 mm H |
| Frequency Rating | 45 to 62 |
| Frequency Rating | 45 to 62 Hz |
| Material | Ceramic |
| Mounting type | Holder |
| Rated Breaking Capacity | 120 |
| Rated Breaking Capacity | 120 kA |
| Series | NHG |
| Suitable For Use With | Class C gG/gL Fuse |
| Type | Dual Indicator Low Voltage Size 03 |
| Type | Size 3 Dual Indication Square |
| Voltage Rating | 500 |
| Voltage Rating | 500 V |
| Voltage Rating | 500 VAC/250 VDC |
