Description

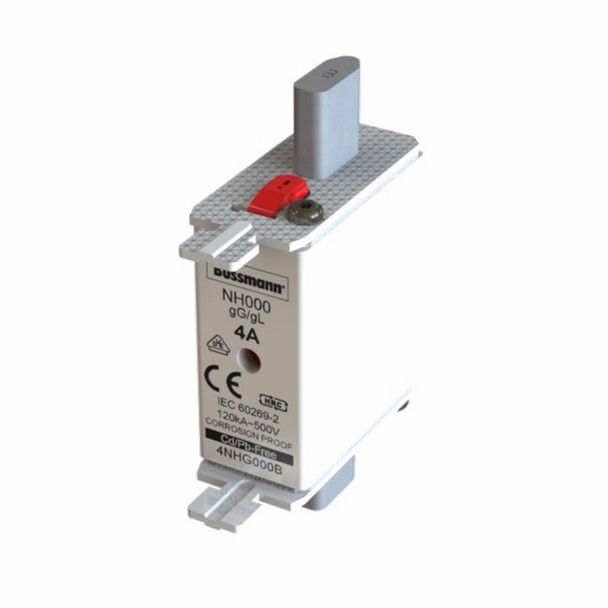

Bussmann 4NHG000B Fuse Link
Bussmann NH Fuse Link, Size 000 Dual Indicator Low Voltage, Series: NHG, 500 V, 4 A, 45 to 62 Hz Frequency, Rated Breaking Capacity: 120 kA, Holder Mounting, For Use With: Class C gG/gL Fuse, Ceramic, 79 mm L x 21 mm W x 51 mm H Dimensions
Additional Description: BUSS-4NHG000B NH FUSE 4AMP 500V SIZE 000 GG MGL
Catalog Description: Eaton Bussmann series low voltage NH Fuse, Live gripping lug, 500V, 4A, 120 kAIC, Combination fuse status indicator, fuse, Blade end connection, Class C gL/gG, Square-body with knife blade contact, Ceramic body
Specifications
| UNSPSC | 39121606 |
|---|---|
| Amperage Rating | 4 |
| Amperage Rating | 4 A |
| Dimensions | 79 mm L x 21 mm W x 51 mm H |
| Frequency Rating | 45 to 62 |
| Frequency Rating | 45 to 62 Hz |
| Material | Ceramic |
| Mounting type | Holder |
| Rated Breaking Capacity | 120 kA |
| Series | NHG |
| Suitable For Use With | Class C gG/gL Fuse |
| Type | Size 000 Dual Indicator Low Voltage |
| Voltage Rating | 500 |
| Voltage Rating | 500 V |
