Description

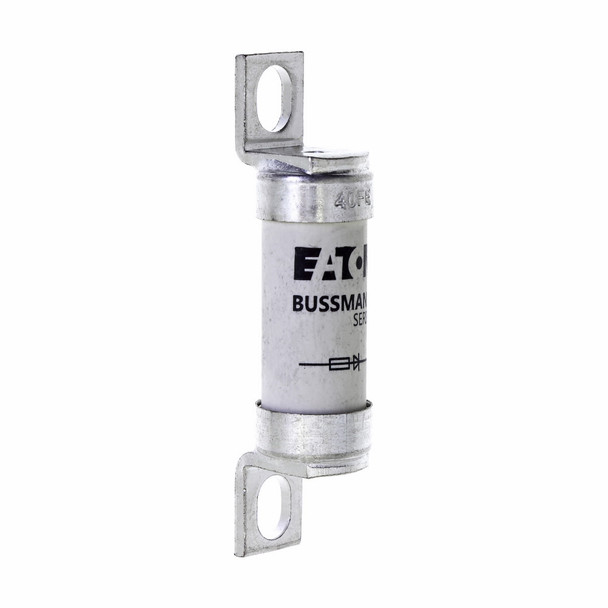

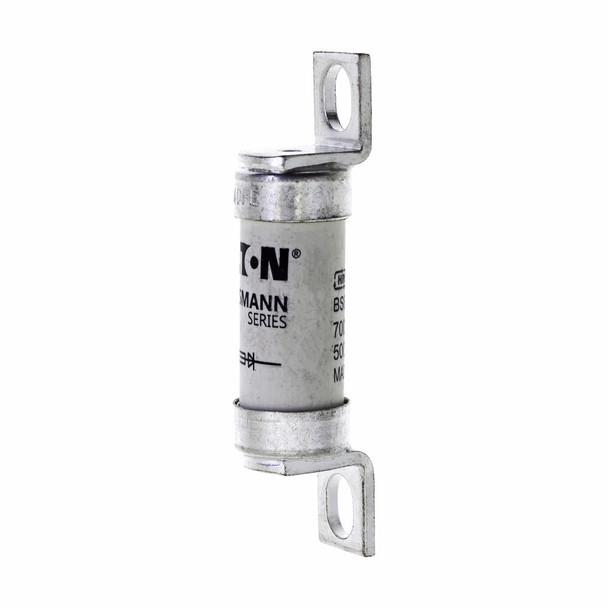

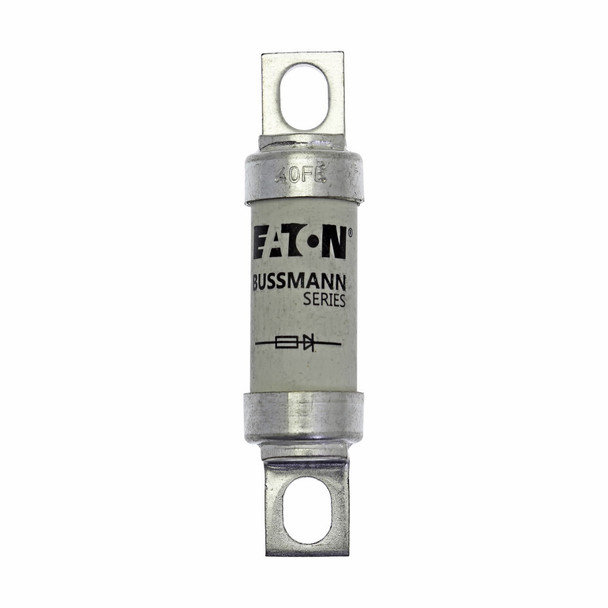

Bussmann 40FE Semiconductor Fuse
Bussmann High Speed Fuse, British Standard Semi-Conductor, Indicating/Non-Indicating: Non-Indicating, 40 A, 690 VAC, 200 kA Interrupt, Blade End Terminal, Stud Mount, 77 mm L x 17.1 mm W x 19.1 mm H Body Size
Additional Description: BUSS-40FE 40A 690V AC TYPE T FUSE
Catalog Description: Eaton Bussmann series high speed British standard fuse, Single barrel, 40A, 690 VAC/500 VDC (IEC), 700 VAC/500 VDC (UL), Class aR, Breaking capacity 200 kA RMS Sym., 50 kA DC at 500 VDC
Specifications
| UNSPSC | 39121625 |
|---|---|
| Amperage Rating | 40 |
| Amperage Rating | 40 A |
| Body Type | Cartridge |
| Indicating/Non-Indicating | Non-Indicating |
| Interrupt Rating | 200 |
| Interrupt Rating | 200 kA |
| Mounting type | Stud |
| Terminal Type | Blade |
| Terminal Type | Blade End |
| Type | British Standard Semi-Conductor |
| Type | Type FE British BS88 Standard |
| Voltage Rating | 240 |
| Voltage Rating | 690 |
| Voltage Rating | 690 VAC |
| Voltage Rating | 690 VAC, 500 VDC |
