Description

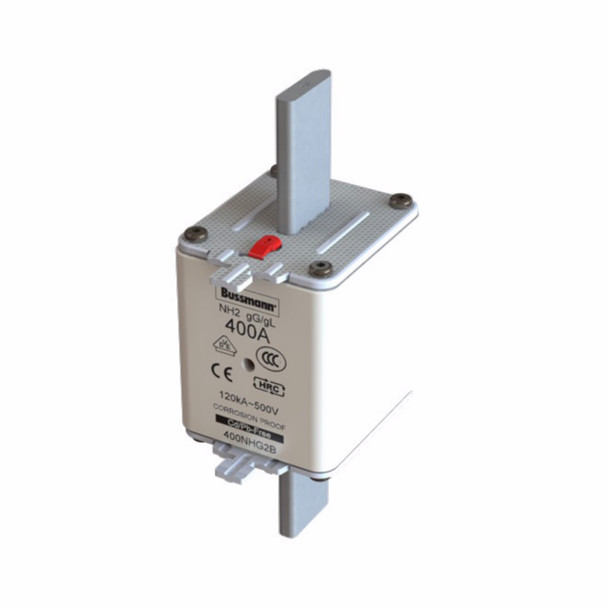

Bussmann 400NHG2B
Bussmann NH Fuse Link, Dual Indicator Low Voltage Size 2 Lead Free, Series: NHG, 500 V, 400 A, 45 to 62 Hz, Rated Breaking Capacity: 120 kAIC, Holder Mount, For Use With: Class C/gG/gL Fuse, Ceramic, 150 mm L x 60 mm W
Additional Description: BUSS-400NHG2B NH FUSE 400A 500V GG/GL SIZE 2
Catalog Description: Eaton Bussmann series low voltage NH Fuse, Live gripping lug, 500V, 400A, 120 kAIC, Combination fuse status indicator, fuse, Blade end connection, Class C gL/gG, Square-body with knife blade contact, Ceramic body - 400NHG2B
Specifications
| UNSPSC | 39121626 |
|---|---|
| Amperage Rating | 400 A |
| Dimensions | 150 mm L x 60 mm W |
| Dimensions | 53.9 mm D x 150 mm H |
| Frequency Rating | 45 to 62 Hz |
| Material | Ceramic |
| Mounting type | Holder |
| Rated Breaking Capacity | 120 kA |
| Rated Breaking Capacity | 120 kAIC |
| Series | NHG |
| Suitable For Use With | Class C/gG/gL Fuse |
| Type | Dual Indicator Low Voltage Size 2 |
| Voltage Rating | 500 V |
| Voltage Rating | 500 VAC |
