Description

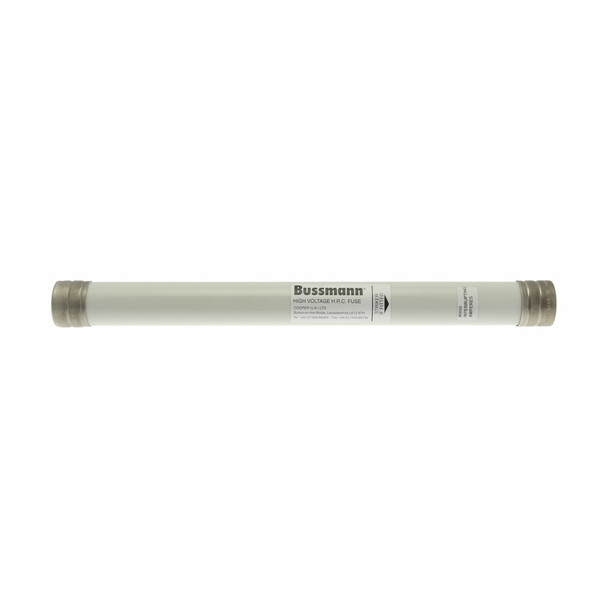

Bussmann 38CAVH1E Fuse
Bussmann Fuse, 1-Barrel Current Limiting, Series: CAV, Non-Indicating, 1 A, 38 kV, 40 kA Interrupt, Class: E, Ferrule Terminal, Bolted-On Mounting, 1.63 in Dia x 17.32 in L Body
Additional Description: BUSS-38CAVH1E 38KV 1A CAV FUSE
Catalog Description: Eaton Bussmann series medium auxiliary fuse, VT fuse-link, medium voltage, 1 A, AC 38 kV, 440 x 41.3 mm, back-up, IEC, US, 1E, Protect of auxiliary transformers, 1 A, 1E, 40K A Breaking Cap, Inst Air, Back-up, E, IEC, AC, Class back-up
Specifications
| UNSPSC | 39121626 |
|---|---|
| Amperage Rating | 1 |
| Amperage Rating | 1 A |
| Amperage Rating | 1E |
| Class | E |
| Indicating/Non-Indicating | Indicating |
| Indicating/Non-Indicating | Non-Indicating |
| Interrupt Rating | 40 |
| Interrupt Rating | 40 kA |
| Mounting type | Bolted-On |
| Mounting type | Bolt-On |
| Series | CAV |
| Series | CAVH |
| Terminal Type | Ferrule |
| Type | 1-Barrel Current Limiting |
| Type | Single Barrel |
| Voltage Rating | 38 |
| Voltage Rating | 38 kV |
