Description

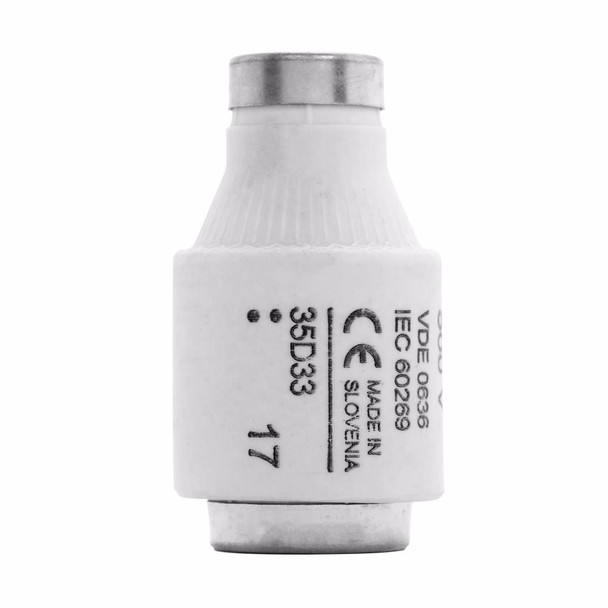

Bussmann 35D33 Diazed Fuse Link
Bussmann Fuse Link, Low Voltage Non-Indicating Time Delay, Series: D33, 500 VAC, 35 A, Rated Breaking Capacity: 100 kA, Holder Mount, For Use with: E33/DIII Size Screw Cap, Class C gG/gL Fuse, Ceramic, Black, 27.5 mm Dia x 50 mm L
Additional Description: BUSS-35D33 FUSE-D3 35A T GL/GG 500VAC E33 E33
Catalog Description: Eaton Bussmann series low voltage D fuse, 500V, 35A, 50 kAIC, Non Indicating, fuse, Class C gL/gG, Time delay, Black, Ceramic body
Specifications
| UNSPSC | 39121606 |
|---|---|
| Amperage Rating | 35 |
| Amperage Rating | 35 A |
| Color | Black |
| Dimensions | 27.5 mm Dia x 50 mm L |
| Material | Ceramic |
| Mounting type | Holder |
| Rated Breaking Capacity | 100 |
| Rated Breaking Capacity | 100 kA |
| Series | D33 |
| Suitable For Use With | E33/DIII Size Screw Cap, Class C gG/gL Fuse |
| Suitable For Use With | E33/DIII Size Screw Cap/Fuse |
| Type | Class gG/gL Low Voltage Non-Indicating Time Delay |
| Type | Low Voltage Non-Indicating Time Delay |
| Voltage Rating | 500 |
| Voltage Rating | 500 VAC |
