Description

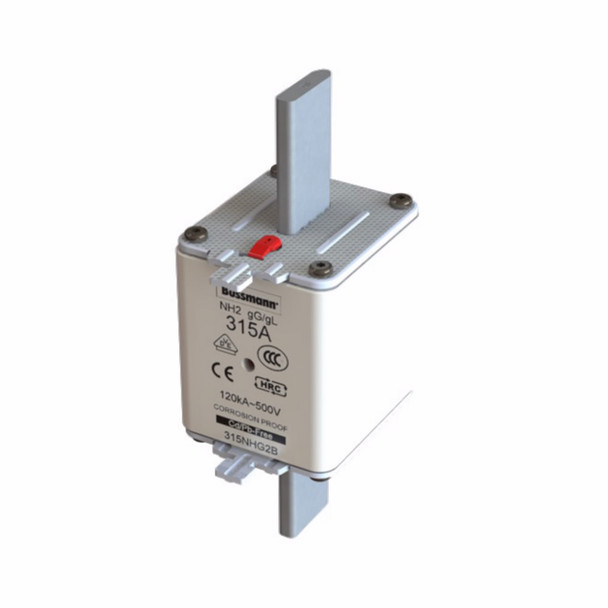

Bussmann 315NHG2B Fuse Link
Bussmann NH Fuse Link, Dual Indicator Low Voltage Size 2 Lead Free, Series: NHG, 500 V, 315 A, 45 to 62 Hz, Rated Breaking Capacity: 120 kAIC, Holder Mount, For Use With: Class C/gG/gL Fuse, Ceramic, 150 mm L x 60 mm W
Additional Description: BUSS-315NHG2B NH FUSE 315A 500V GG/GL SIZE 2 IN
Catalog Description: Fuse-link, low voltage, 315 A, AC 500 V, NH2, gL/gG, IEC, dual indicator
Specifications
| UNSPSC | 39121626 |
|---|---|
| Amperage Rating | 315 |
| Amperage Rating | 315 A |
| Dimensions | 150 mm L x 54 mm W x 71 mm H |
| Dimensions | 150 mm L x 60 mm W |
| Frequency Rating | 45 to 62 |
| Frequency Rating | 45 to 62 Hz |
| Material | Ceramic |
| Mounting type | Holder |
| Rated Breaking Capacity | 120 |
| Rated Breaking Capacity | 120 kAIC |
| Series | NHG |
| Suitable For Use With | Bussmann NH Size Photovoltaic Fuse |
| Suitable For Use With | Class C/gG/gL Fuse |
| Type | Dual Indicator Low Voltage Size 2 |
| Type | Size 2 Class gG/gL Dual Indicator |
| Type | Size 2 Dual Indication Square |
| Voltage Rating | 500 |
| Voltage Rating | 500 V |
| Voltage Rating | 500 VAC/250 VDC |
