Description

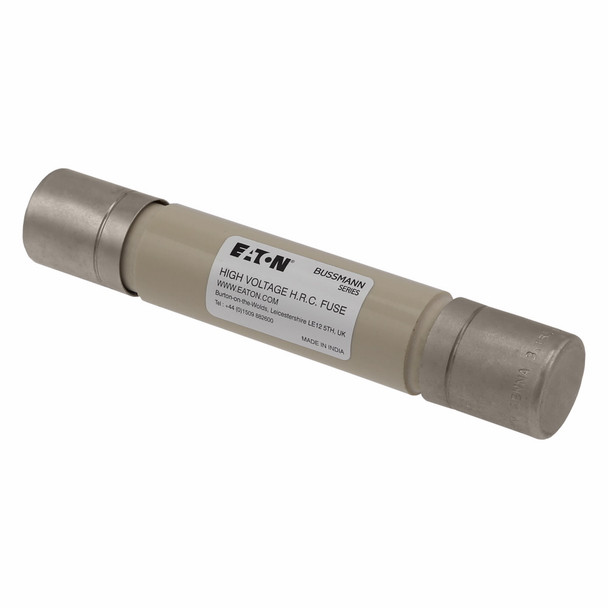

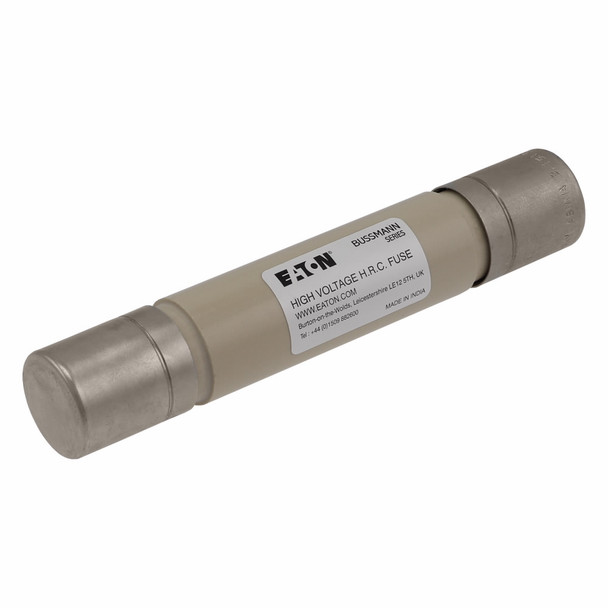

Bussmann 3.6ABWNA3.15 Potential Transformer Fuse
Bussmann Potential Transformer Fuse, Auxiliary British Style Medium Voltage, Series: AB Series, Indicating/Non-Indicating: Non-Indicating, 3.15 A, 3.6 kV, 50 kA Interrupt, Class: Back-Up, Ferrule Terminal, Bolt-On Mount, Body Type: Cartridge, 1 in Dia x 5.6 in L Body Size
Additional Description: BUSS-3.6ABWNA3.15 3.6KV 3.15A FUSE
Catalog Description: VT fuse-link, medium voltage, 3.15 A, AC 3.6 kV, 25.4 x 142 mm, back-up, BS, IEC
Specifications
| UNSPSC | 39121626 |
|---|---|
| Amperage Rating | 3.15 |
| Amperage Rating | 3.15 A |
| Body Type | Cartridge |
| Class | Back-Up |
| Indicating/Non-Indicating | Non-Indicating |
| Interrupt Rating | 50 |
| Interrupt Rating | 50 kA |
| Mounting type | Bolt-On |
| Response Time | 300 |
| Series | AB Series |
| Terminal Type | Ferrule |
| Type | Auxiliary British Style Medium Voltage |
| Type | British Style |
| Type | Medium Voltage |
| Voltage Rating | 3.6 |
| Voltage Rating | 3.6 kV |
