Description

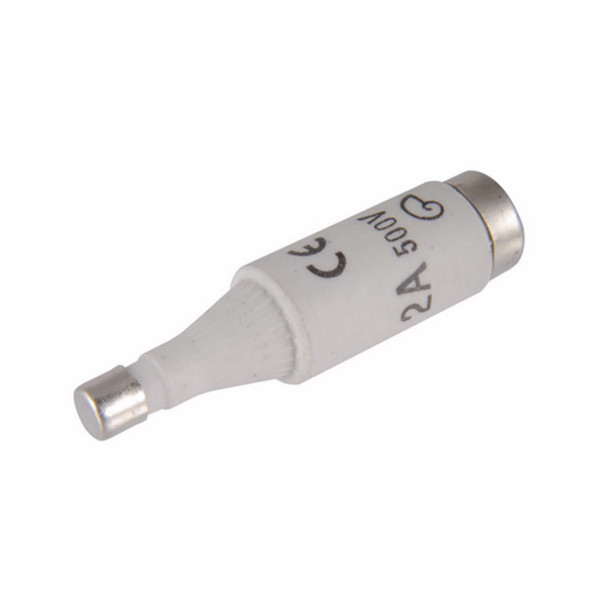

Bussmann 2D16 Diazed Fuse Link
Bussmann Fuse, Type D Low Voltage Time Delay, Non-Indicating, 2 A, 500 V, 100 kA Interrupt, Class: GL/GG/C, Holder Mounting, Ceramic, Pink, 13.2 mm Dia x 50 mm L Body
Additional Description: BUSS-2D16 FUSE-D1 2A T GL/GG 500VAC E16
Catalog Description: Eaton Bussmann series low voltage D fuse, 500V, 2A, 50 kAIC, Non Indicating, fuse, Class C gL/gG, Time delay, Holder, Pink, Ceramic body
Specifications
| UNSPSC | 39121626 |
|---|---|
| Amperage Rating | 2 |
| Amperage Rating | 2 A |
| Class | gG/gL |
| Class | GL/GG/C |
| Color | Pink |
| Dimensions | 13.2 mm Dia x 50 mm L |
| Indicating/Non-Indicating | Non-Indicating |
| Interrupt Rating | 100 |
| Interrupt Rating | 100 kA |
| Material | Ceramic |
| Mounting type | Holder |
| Rated Breaking Capacity | 100 |
| Series | D16 |
| Suitable For Use With | E16/DI Size Screw Cap/Fuse |
| Type | Class gG/gL Low Voltage Non-Indicating Time Delay |
| Type | Type D Low Voltage Time Delay |
| Voltage Rating | 500 |
| Voltage Rating | 500 V |
