Description

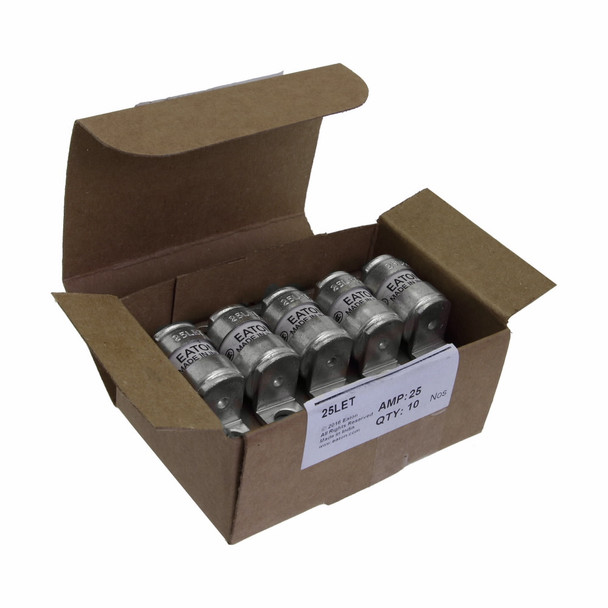

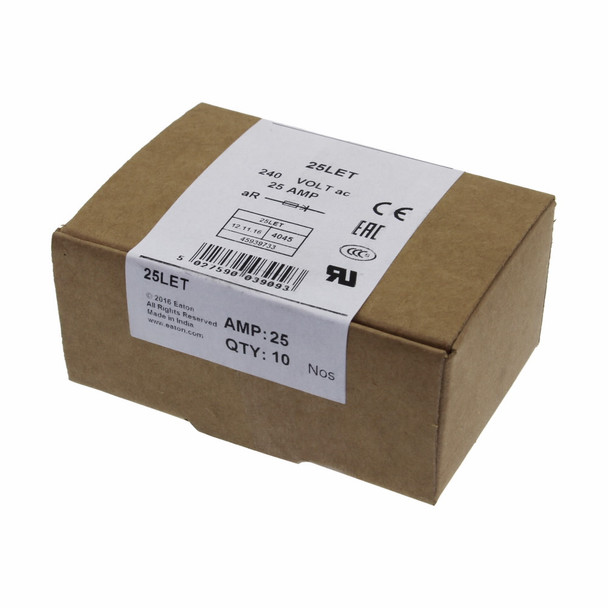

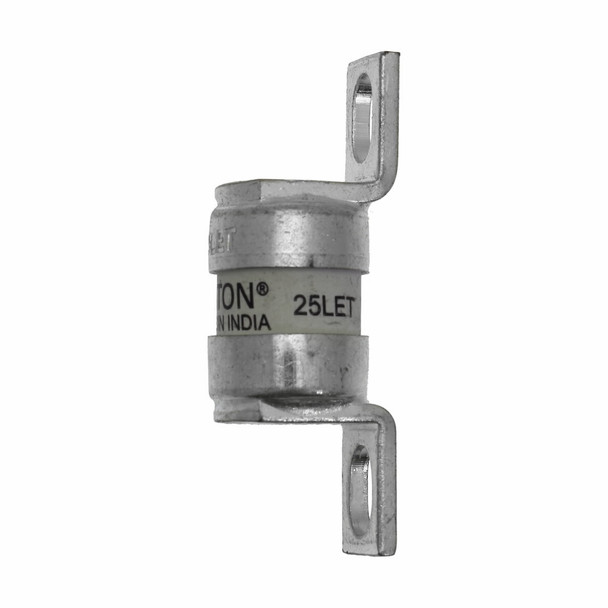

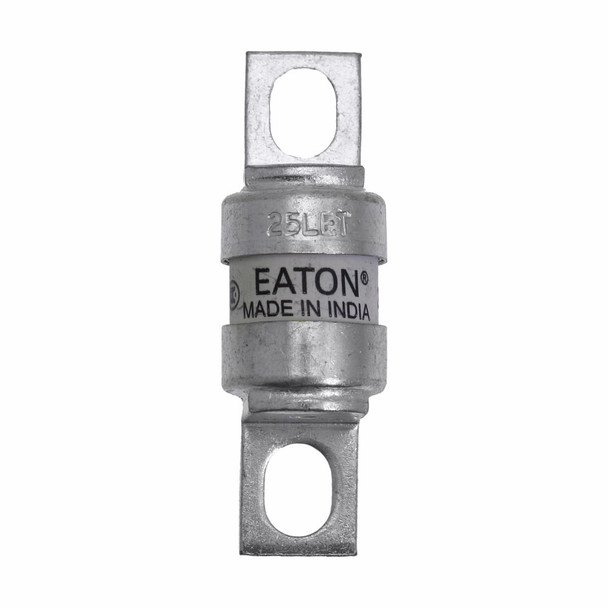

Bussmann 25LET High Speed Fuse
Bussmann High Speed Fuse, British Standard, Series: LET, Non-Indicating, 25 A, 240 V, 200 kA Interrupt, Class: AR, Blade End Terminal, Stud Mounting, Cartridge Body, 56 mm L x 17.7 mm W x 19.1 mm H Body
Additional Description: BUSS-25LET 25AMP 240V AC BS88 FUSE
Catalog Description: Eaton Bussmann series high speed British standard fuse, 25A, 280 VAC/150 VDC (UL), Class aR, Breaking capacity 200 kA RMS Sym., 50 kA DC at 150 VDC
Specifications
| UNSPSC | 39121625 |
|---|---|
| Amperage Rating | 25 |
| Amperage Rating | 25 A |
| Body Type | Cartridge |
| Class | AR |
| Indicating/Non-Indicating | Non-Indicating |
| Interrupt Rating | 200 |
| Interrupt Rating | 200 kA |
| Interrupt Rating | 50/200 |
| Mounting type | Stud |
| Series | LET |
| Terminal Type | Blade |
| Terminal Type | Blade End |
| Type | British Standard |
| Type | British Style |
| Type | Type LET British BS88 Semi-Conductor |
| Voltage Rating | 240 V |
| Voltage Rating | 240 VAC, 150 VDC |
| Voltage Rating | 240/250 VAC, 150 VDC |
