Description

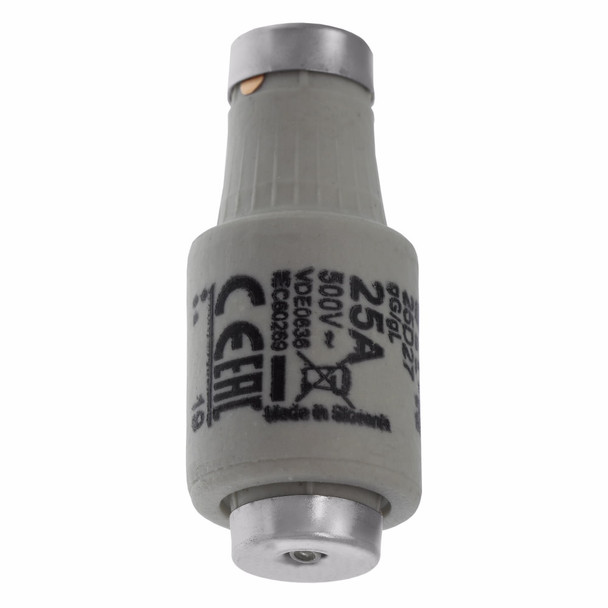

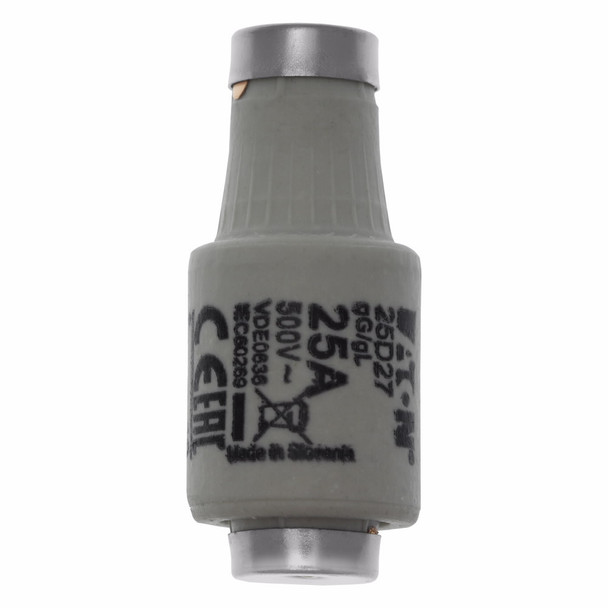

Bussmann 25D27 Diazed Fuse Link
Bussmann Fuse, Type D Low Voltage Time Delay, Non-Indicating, 25 A, 500 V, 100 kA Interrupt, Class: GL/GG/C, Cartridge Terminal, Holder Mounting, Round Body, Ceramic, Yellow, 21.5 mm Dia x 50 mm L Body
Additional Description: BUSS-25D27 FUSE-D2 25A T GL/GG 500VAC E27
Catalog Description: Eaton Bussmann series low voltage D fuse, 500V, 25A, 50 kAIC, Non Indicating, fuse, Class C gL/gG, Time delay, Yellow, Ceramic body
Specifications
| UNSPSC | 39121606 |
|---|---|
| Amperage Rating | 25 |
| Amperage Rating | 25 A |
| Body Type | Round |
| Class | GL/GG/C |
| Color | Yellow |
| Dimensions | 21.5 mm Dia x 50 mm L |
| Indicating/Non-Indicating | Non-Indicating |
| Interrupt Rating | 100 kA |
| Material | Ceramic |
| Mounting type | Holder |
| Rated Breaking Capacity | 100 |
| Series | D27 |
| Suitable For Use With | E27/DII Size Screw Cap/Fuse |
| Terminal Type | Cartridge |
| Type | Class gG/gL Low Voltage Non-Indicating Time Delay |
| Type | Type D Low Voltage Time Delay |
| Voltage Rating | 500 |
| Voltage Rating | 500 V |
