Description

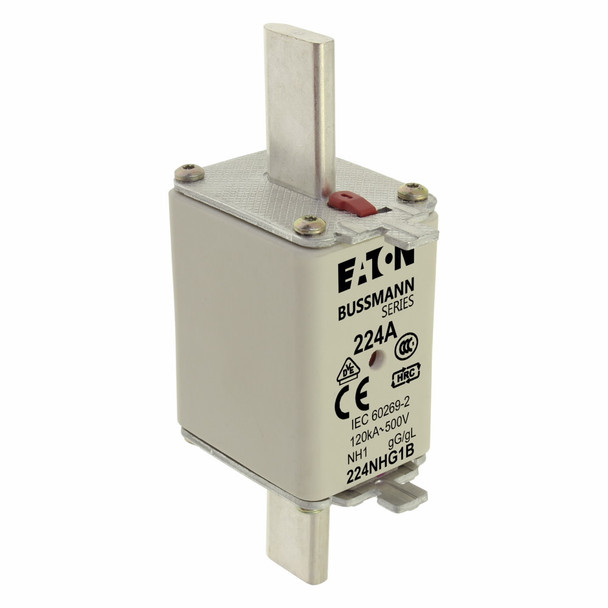

Bussmann 224NHG1B Fuse Link
Bussmann NH Fuse Link, Size 1 Dual Indicator Low Voltage Lead Free, Series: NHG, 500 V, 224 A, 45 to 62 Hz, Rated Breaking Capacity: 120 kAIC, Holder Mount, For Use With: Class C/gG/gL Fuse, Ceramic, 135 mm L x 52 mm W
Additional Description: BUSS-224NHG1B NH FUSE 224A 500V GG/GL SIZE 1
Catalog Description: Eaton Bussmann series low voltage NH Fuse, Live gripping lug, 500V, 224A, 120 kAIC, Combination fuse status indicator, fuse, Blade end connection, Class C gL/gG, Square-body with knife blade contact, Ceramic body
Specifications
| UNSPSC | 39121626 |
|---|---|
| Amperage Rating | 224 |
| Amperage Rating | 224 A |
| Dimensions | 135 mm L x 52 mm W |
| Dimensions | 39.65 mm D x 135 mm H |
| Frequency Rating | 45 to 62 |
| Frequency Rating | 45 to 62 Hz |
| Material | Ceramic |
| Mounting type | Holder |
| Rated Breaking Capacity | 120 |
| Rated Breaking Capacity | 120 kAIC |
| Series | NHG |
| Suitable For Use With | Class C/gG/gL Fuse |
| Type | Size 1 Dual Indication Square |
| Type | Size 1 Dual Indicator Low Voltage |
| Voltage Rating | 500 |
| Voltage Rating | 500 V |
| Voltage Rating | 500 VAC/250 VDC |
