Description

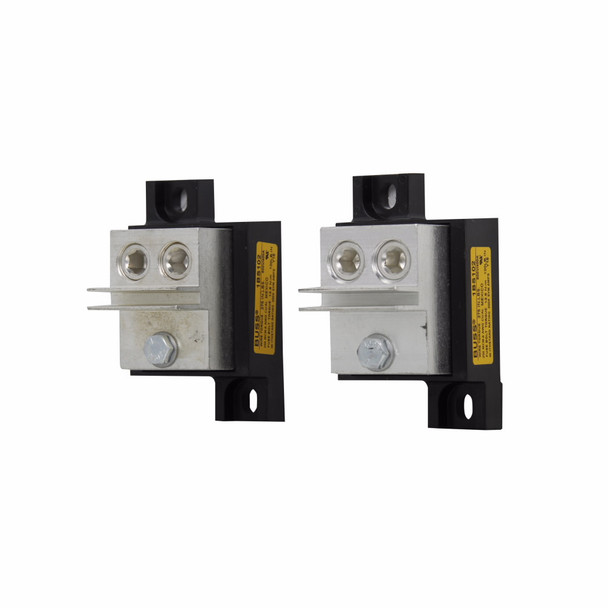

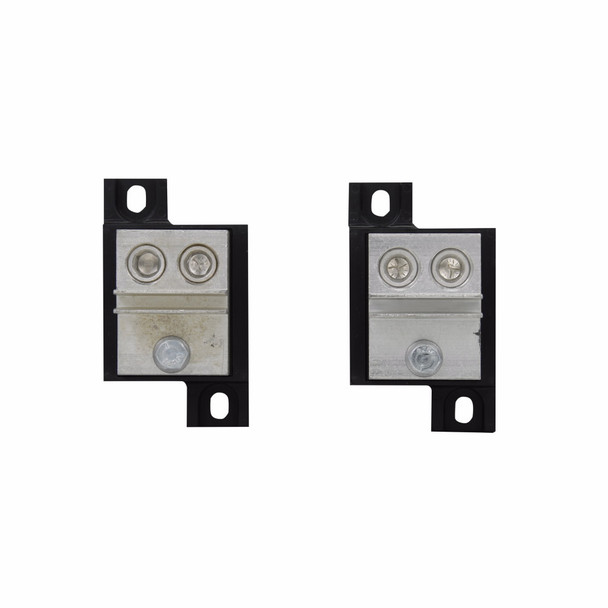

Bussmann 1BS102 Power Fuse Block
Bussmann Fuse Block, Modular Universal, Series: 1BS10x, 600 V, 400 A, 1 Pole, Screw, 6 AWG to 250 kcmil Wire, Stud Mount, 150 deg C, For Use With: 300/600 VAC Class T High Speed Fuse, Phenolic, Black, 2.25 in W x 2.53 in H
Additional Description: BUSS-1BS102 BUSS FUSEBLOCK
Catalog Description: Eaton Universal fuse block, Modular, 400 A, 150, Celsius, 150, Celsius, Screw, 200 kAIC, Molded black phenolic base, Tin-plated aluminum connector, Zinc-plated steel studs/nut/washer, Stud, 600 V, Used with Type SC fuses, #6-250 kcmil Cu/Al
Specifications
| UNSPSC | 39121624 |
|---|---|
| Amperage Rating | 400 |
| Amperage Rating | 400 A |
| Color | Black |
| Connection type | Screw |
| Connection type | Set Screw |
| Dimensions | 2.25 in W x 2.53 in H |
| Material | Phenolic |
| Mounting type | Stud |
| Number of Poles | 1 |
| Series | 1BS10x |
| Suitable For Use With | 300/600 VAC Class T High Speed Fuse |
| Suitable For Use With | Bussmann High Speed 300/600 VAC Class T Fuse |
| Temperature Rating (Degrees F) | 150 |
| Temperature Rating (Degrees F) | 150 deg C |
| Type | Modular |
| Type | Modular Universal |
| Voltage Rating | 600 |
| Voltage Rating | 600 V |
| Wire Size | 6 AWG to 250 kcmil |
