Description

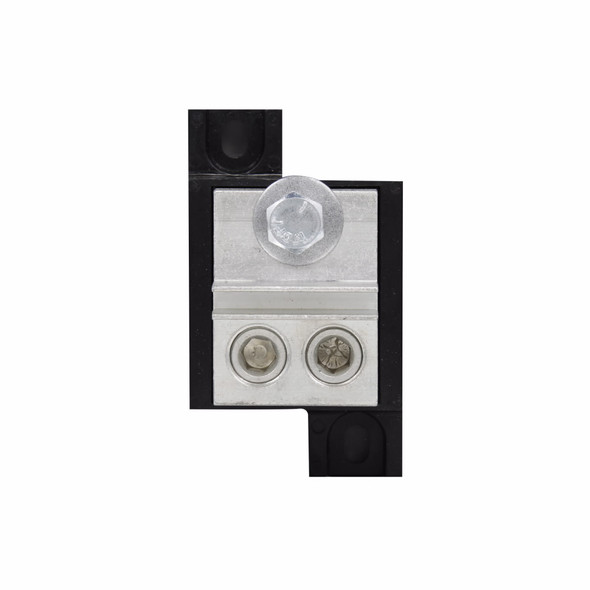

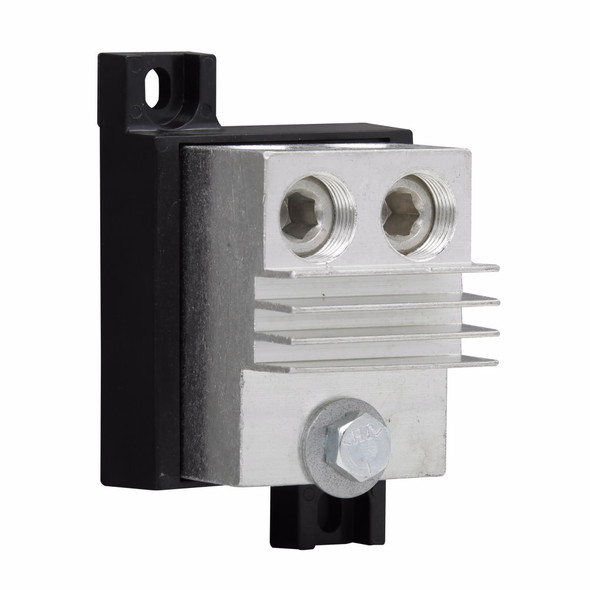

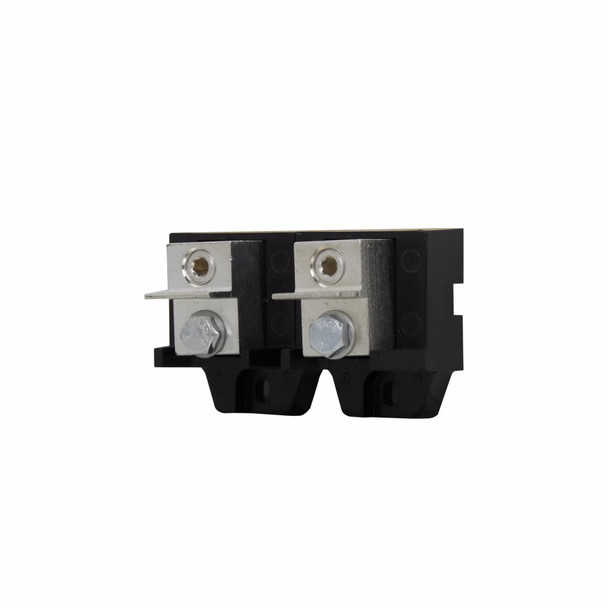

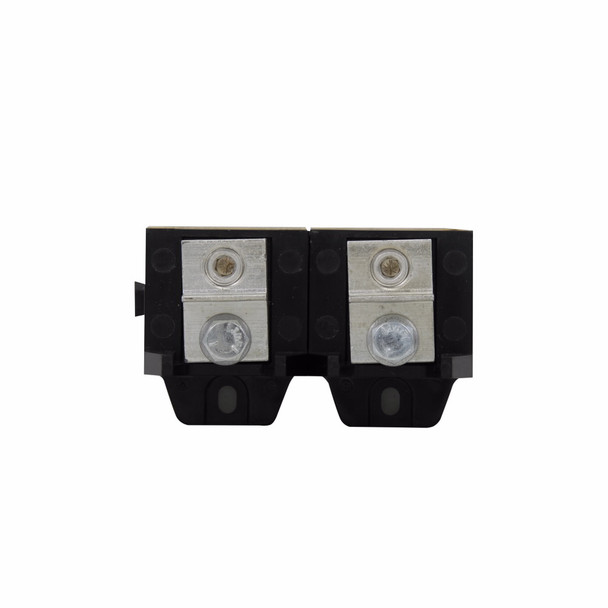

Bussmann 1BS101 Fuse Block
Bussmann Fuse Block, Modular Universal, Series: 1BS10x, 600 V, 100 A, 1 Pole, Setscrew, 14 to 2/0 AWG Wire, Stud Mount, 150 deg C, Phenolic, Black, 4.4 in L x 3.2 in W x 2 in H
Additional Description: BUSS-1BS101 BUSS FUSEBLOCK
Catalog Description: Eaton Universal fuse block, Modular, 100 A, 150, Celsius, 150, Celsius, Set screw, 200 kAIC, Molded black phenolic base, Zinc-plated steel studs/nut/washer, Tin-plated aluminum connector, Stud, 600 V, #14-2/0 AWG Cu/Al
Specifications
| UNSPSC | 39121624 |
|---|---|
| Amperage Rating | 100 |
| Amperage Rating | 100 A |
| Color | Black |
| Connection type | Set Screw |
| Connection type | Setscrew |
| Dimensions | 2 in H |
| Dimensions | 4.4 in L x 3.2 in W x 2 in H |
| Dimensions | 4.4 in L x 3.2 in W x 2.6 in H |
| Material | Molded Black Phenolic |
| Material | Phenolic |
| Mounting type | Stud |
| Number of Poles | 1 |
| Series | 1BS10x |
| Suitable For Use With | Bussmann 300/600 VAC Class T High Speed Fuse |
| Temperature Rating (Degrees F) | 150 |
| Temperature Rating (Degrees F) | 150 deg C |
| Type | Modular |
| Type | Modular Universal |
| Voltage Rating | 600 |
| Voltage Rating | 600 V |
| Wire Size | 14 to 2/0 |
| Wire Size | 14 to 2/0 AWG |
