Description

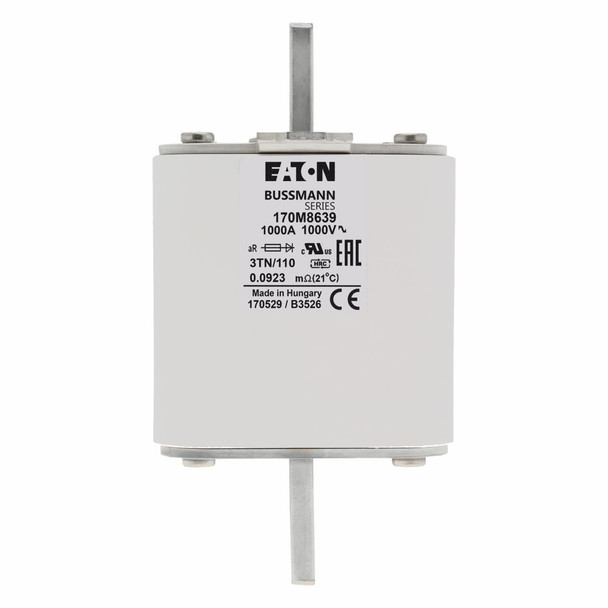

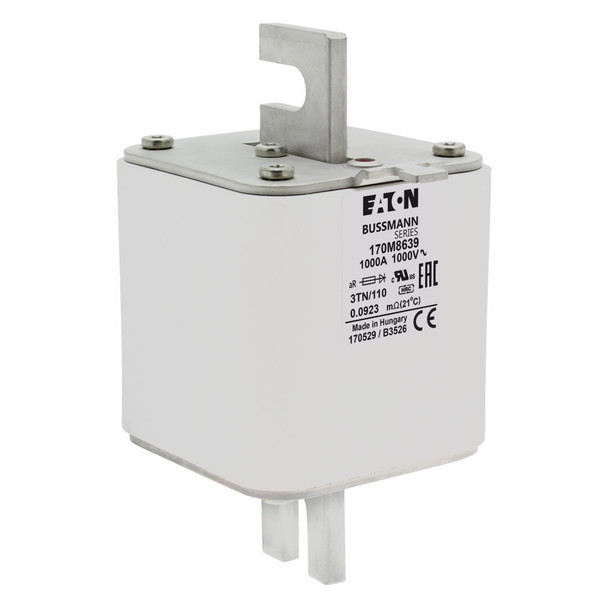

Bussmann 170M8639
Edison High Speed Fuse, Indicating, 1000 A, 1000 VAC, 125 kA Interrupt, Class: AR, Bolted-Down Terminal, Stud Mounting, Square Body, 139 mm L x 74 mm W x 90 mm H Body
Additional Description: BUSS-170M8639 FUSE 1000A 1000V 3TN/110 AR UR
Catalog Description: Eaton Bussmann series high speed square body fuse, 1000A, 125 kAIC, Top fuse status indicator, Fuse, Class aR, DIN 43 620
Specifications
| UNSPSC | 39121625 |
|---|---|
| Amperage Rating | 1000 A |
| Body Type | Square |
| Class | AR |
| Indicating/Non-Indicating | Indicating |
| Interrupt Rating | 125 kA |
| Mounting type | Stud |
| Series | 170M |
| Terminal Type | Bolted-Down |
| Terminal Type | DIN 43 653 Blade |
| Type | Type T |
| Voltage Rating | 1000 V |
| Voltage Rating | 1000 VAC |
