Description

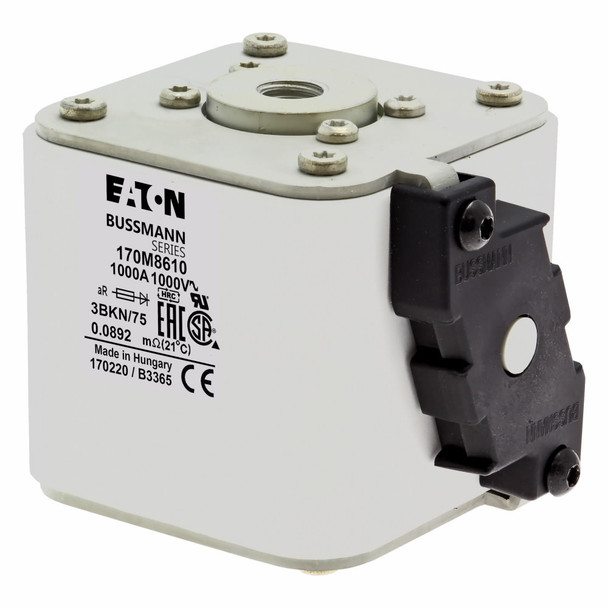

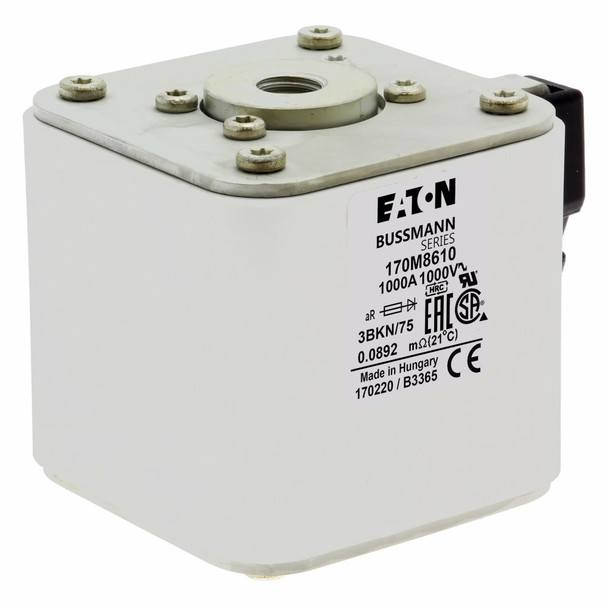

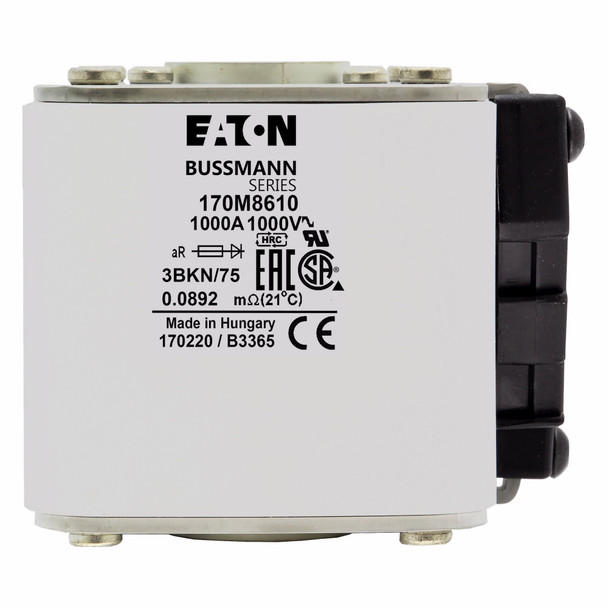

Bussmann 170M8610 Semiconductor Fuse
Bussmann Semiconductor Fuse, High Speed, Series: 170M, Indicating/Non-Indicating: Non-Indicating, 1000 A, 1000 V, 150 kA Interrupt, Class: AR, Flush Mount, Body Type: Square, 75.4 mm L x 74 mm W x 92 mm H Body Size
Additional Description: BUSS-170M8610 FUSE 1000A 1000V 3BKN/75 AR UR
Catalog Description: Fuse-link, high speed, 1000 A, AC 1000 V, size 3, 74 x 92 x 76 mm, aR, IEC, UL, single indicator
Specifications
| UNSPSC | 39121625 |
|---|---|
| Amperage Rating | 1000 |
| Amperage Rating | 1000 A |
| Body Type | Square |
| Class | AR |
| Class | Class AR |
| Indicating/Non-Indicating | Non-Indicating |
| Interrupt Rating | 150 |
| Interrupt Rating | 150 kA |
| Mounting type | Flush |
| Series | 170M |
| Type | High Speed |
| Voltage Rating | 1000 V |
| Voltage Rating | 690 |
