Description

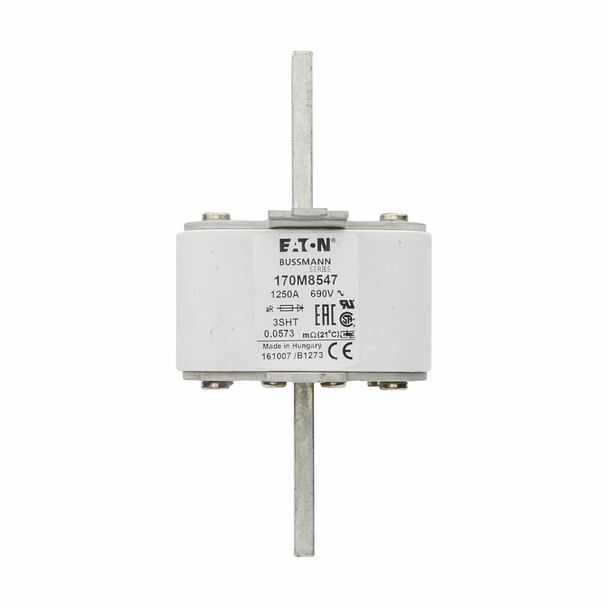

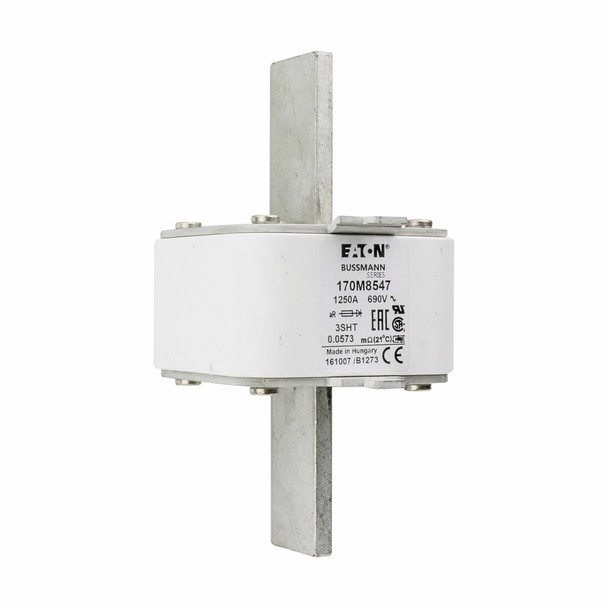

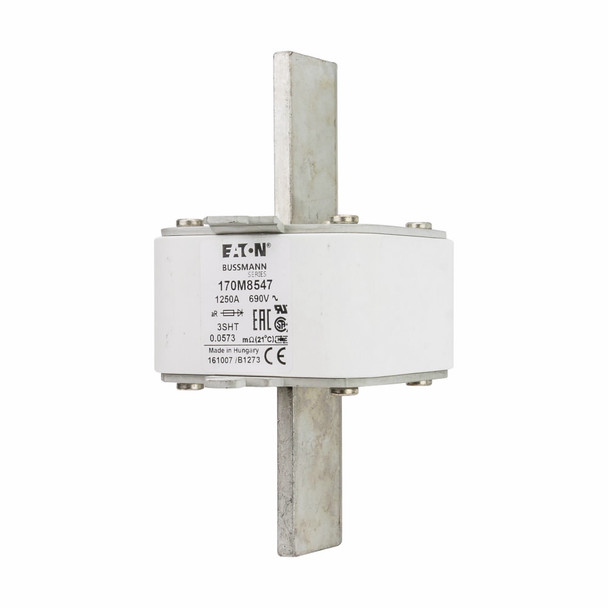

Bussmann 170M8547 High Speed Fuse
Bussmann High Speed Fuse, Type 3SHT, Series: 170M, Non-Indicating, 1250 A, 690 V, Class: aR, 45 to 1000 Hz Frequency, Blade Terminal, Square Body, Ceramic, 3-1/4 in L x 2-3/4 in W x 5-3/4 in H Body
Additional Description: BUSS-170M8547 FUSE 1250A 690V 3SHT AR UC
Catalog Description: Fuse-link, high speed, 1250 A, AC 690 V, size 3, 76 x 76 x 150 mm, aR, IEC, single indicator
Specifications
| UNSPSC | 39121625 |
|---|---|
| Amperage Rating | 1.25 |
| Amperage Rating | 1250 A |
| Body Type | Square |
| Class | AR |
| Frequency Rating | 45 to 1000 |
| Frequency Rating | 45 to 1000 Hz |
| Indicating/Non-Indicating | Non-Indicating |
| Material | Ceramic |
| Series | 170M |
| Terminal Type | Blade |
| Type | Type 3SHT |
| Voltage Rating | 690 |
| Voltage Rating | 690 V |
