Description

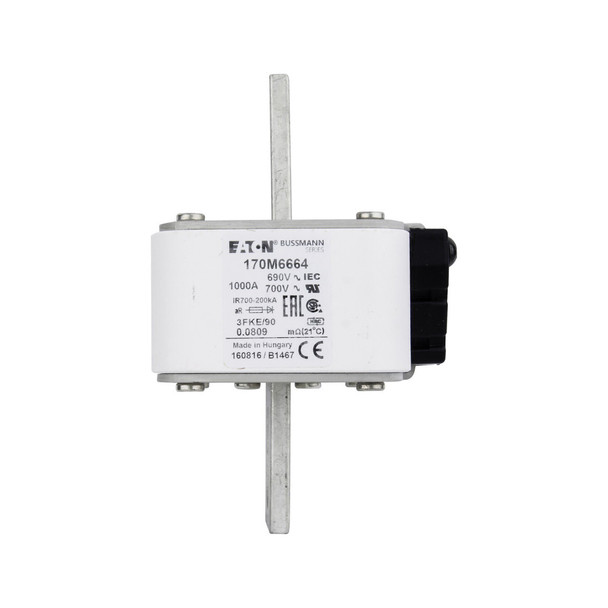

Bussmann 170M6664 High Speed Fuse
Bussmann High Speed Fuse, Type FKE US Style, Series: 170M, Non-Indicating, 1000 A, 690 V, 200 kA Interrupt, Class: aR, 45 to 1000 Hz Frequency, Blade End Terminal, Stud Mounting, Square Body, Ceramic, 135 mm L x 76 mm W x 92 mm H Body
Additional Description: BUSS-170M6664 FUSE 1000A 690V 3FKE/90 AR UC
Catalog Description: Fuse-link, high speed, 1000 A, AC 690 V, size 3, 76 x 92 x 135 mm, aR, IEC, UL, single indicator
Specifications
| UNSPSC | 39121625 |
|---|---|
| Amperage Rating | 1 |
| Amperage Rating | 1000 |
| Amperage Rating | 1000 A |
| Body Type | Square |
| Class | AR |
| Frequency Rating | 45 to 1000 |
| Frequency Rating | 45 to 1000 Hz |
| Indicating/Non-Indicating | Non-Indicating |
| Interrupt Rating | 200 |
| Interrupt Rating | 200 kA |
| Material | Ceramic |
| Mounting type | Stud |
| Series | 170M |
| Terminal Type | Blade |
| Terminal Type | Blade End |
| Type | Type FKE US Style |
| Voltage Rating | 690 |
| Voltage Rating | 690 V |
| Voltage Rating | 690/700 |
