Description

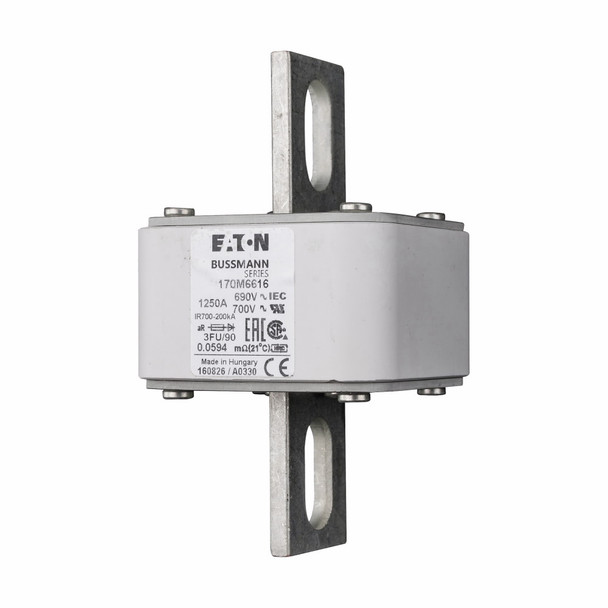

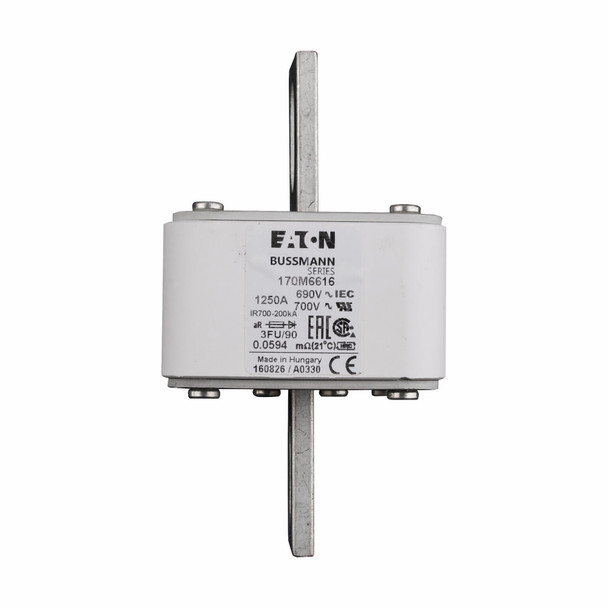

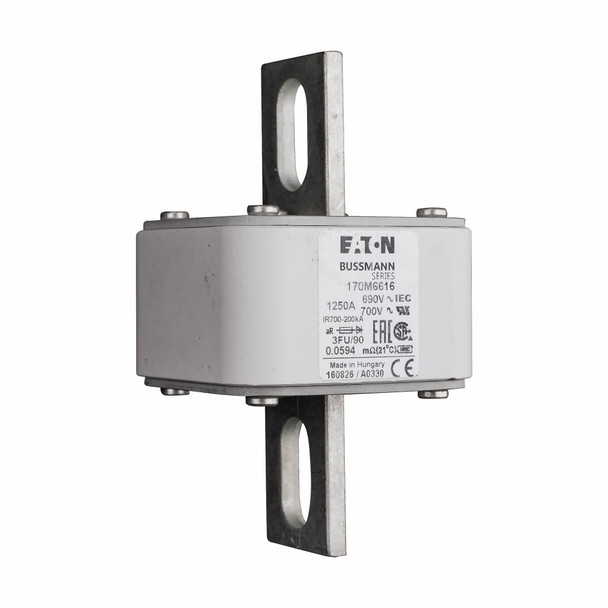

Bussmann 170M6616 High Speed Fuse
Bussmann High Speed Fuse, Type FU US Style, Series: 170M, Non-Indicating, 1250 A, 690 V, 200 kA Interrupt, Class: aR, 45 to 1000 Hz Frequency, Blade End Terminal, Stud Mounting, Square Body, Ceramic, 135 mm L x 76 mm W x 92 mm H Body
Additional Description: BUSS-170M6616 FUSE 1250A 690V 3FU/90 AR UC
Catalog Description: Fuse-link, high speed, 1250 A, AC 690 V, size 3, 76 x 92 x 135 mm, aR, IEC, UL
Specifications
| UNSPSC | 39121625 |
|---|---|
| Amperage Rating | 1.25 |
| Amperage Rating | 1250 A |
| Body Type | Square |
| Class | AR |
| Frequency Rating | 45 to 1000 |
| Frequency Rating | 45 to 1000 Hz |
| Indicating/Non-Indicating | Non-Indicating |
| Interrupt Rating | 200 |
| Interrupt Rating | 200 kA |
| Material | Ceramic |
| Mounting type | Stud |
| Series | 170M |
| Terminal Type | Blade |
| Terminal Type | Blade End |
| Type | Type FU US Style |
| Voltage Rating | 690 V |
| Voltage Rating | 690/700 |
