Description

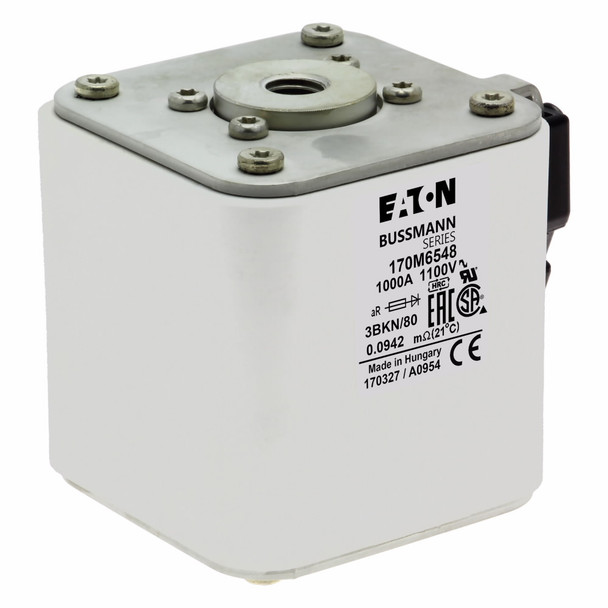

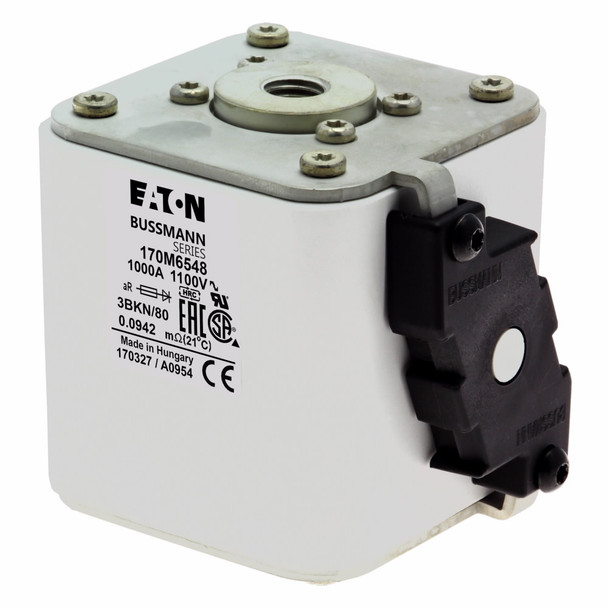

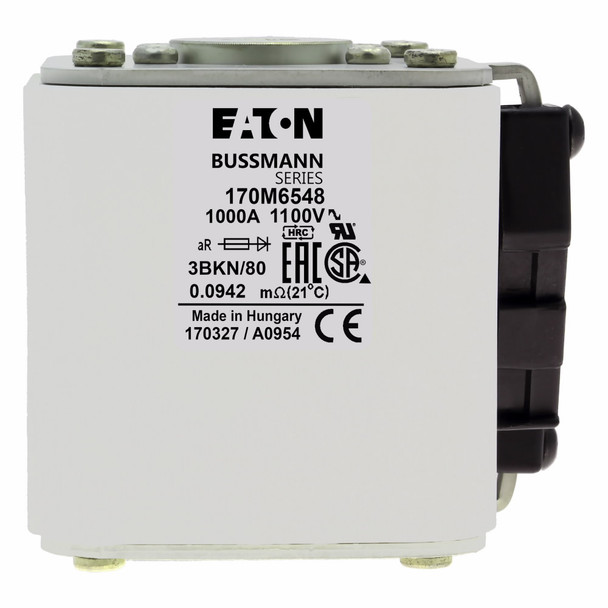

Bussmann 170M6548
Bussmann High Speed Fuse, Semi-Conductor, Series: 170M, Non-Indicating, 1000 A, 1100 V, 200 kA Interrupt, Class: aR, Flush Mounting, Square Body, 5.433 in L x 0.315 in W x 2.087 in H Body
Additional Description: BUSS-170M6548 FUSE 1000A 1100V 3BKN/80 AR
Catalog Description: Fuse-link, high speed, 1000 A, AC 1100 V, size 3, 76 x 92 x 83 mm, aR, IEC, UL, single indicator
Specifications
| UNSPSC | 39121625 |
|---|---|
| Amperage Rating | 1000 A |
| Body Type | Square |
| Class | AR |
| Indicating/Non-Indicating | Non-Indicating |
| Interrupt Rating | 200 kA |
| Mounting type | Flush |
| Series | 170M |
| Type | Semi-Conductor |
| Voltage Rating | 1100 V |
