Description

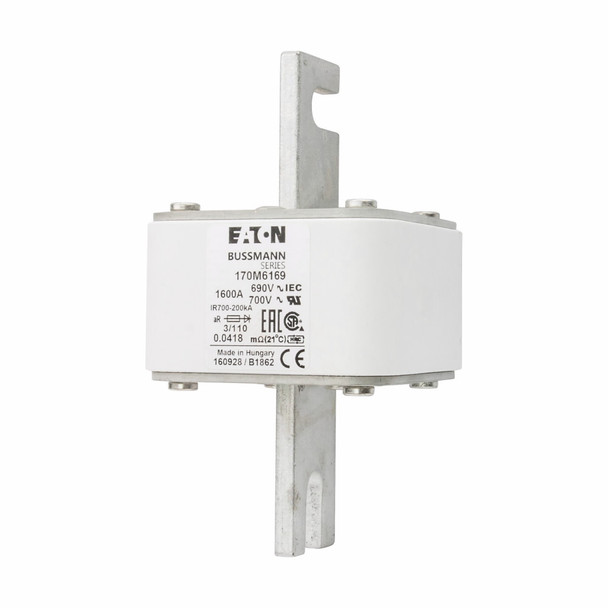

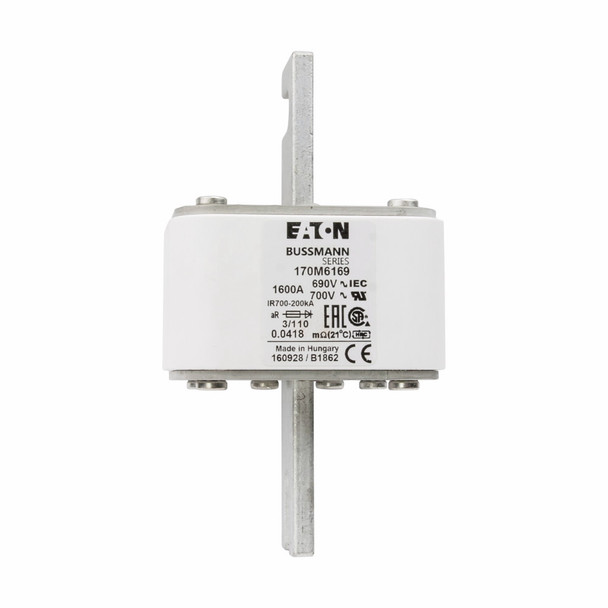

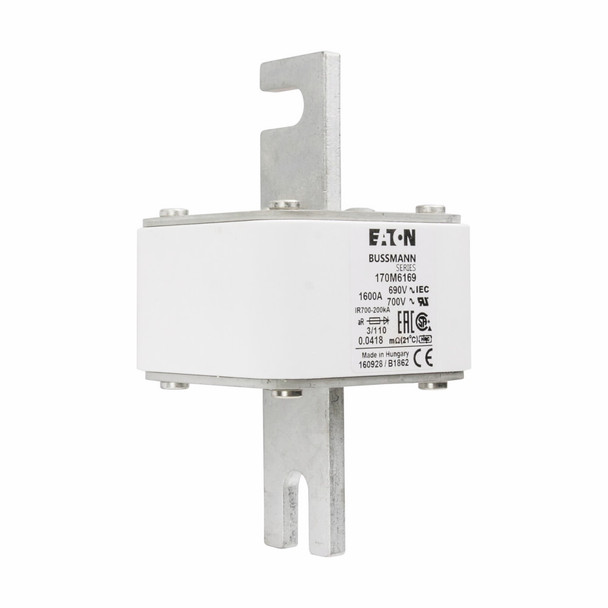

Bussmann 170M6169
Bussmann High Speed Fuse, Type 110, Series: 170M, Indicating, 1600 A, 690 V, 200 kA Interrupt, Class: aR, 45 to 1000 Hz Frequency, Blade End Terminal, DIN 43-653 Stud Mounting, Square Body, Ceramic, 109 mm L x 76 mm W x 90 mm H Body
Additional Description: BUSS-170M6169 FUSE 1600A 690V 3/110 AR UC
Catalog Description: Fuse-link, high speed, 1600 A, AC 690 V, DIN 3, 76 x 90 x 139 mm, aR, DIN, IEC, single indicator
Specifications
| UNSPSC | 39121625 |
|---|---|
| Amperage Rating | 1600 |
| Amperage Rating | 1600 A |
| Body Type | Square |
| Class | AR |
| Frequency Rating | 45 to 1000 |
| Frequency Rating | 45 to 1000 Hz |
| Indicating/Non-Indicating | Indicating |
| Interrupt Rating | 200 |
| Interrupt Rating | 200 kA |
| Material | Ceramic |
| Mounting type | DIN 43-653 Stud |
| Series | 170M |
| Terminal Type | Blade End |
| Type | Type 110 |
| Voltage Rating | 690 |
| Voltage Rating | 690 V |
