Description

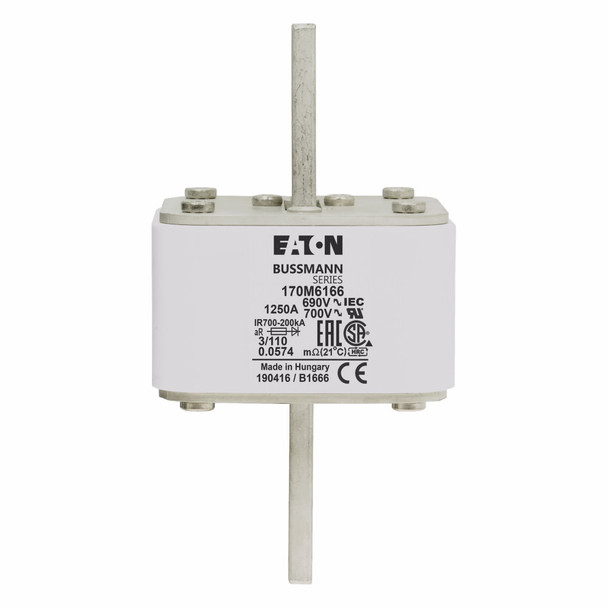

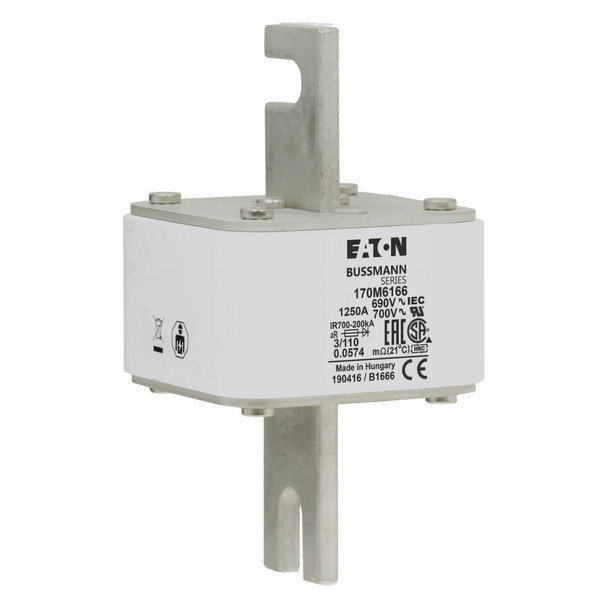

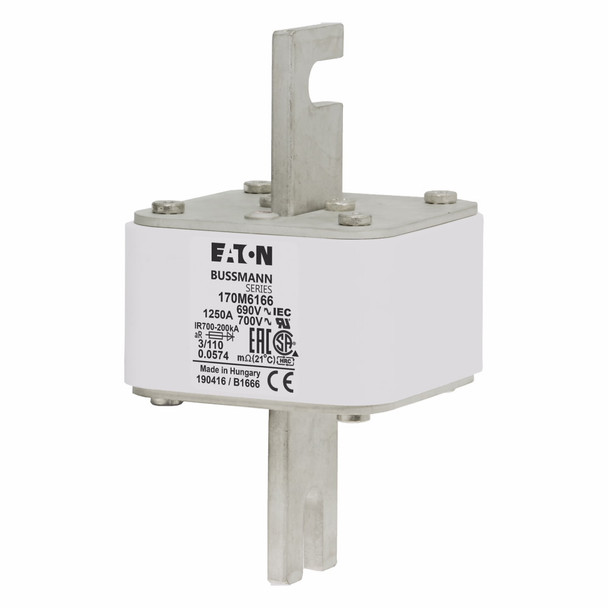

Bussmann 170M6166 Semiconductor Fuse
Bussmann High Speed Fuse, Semi-Conductor, Series: 170M, 1250 A, 690 V, 200 kA Interrupt, Class: aR, Blade End Terminal, DIN 43 620 Mounting, Square Body, 109 mm L x 76 mm W x 90 mm H Body
Additional Description: BUSS-170M6166 FUSE 1250A 690V 3/110 AR UC
Catalog Description: Eaton Bussmann series high speed square body fuse,1250A,200 kAIC,Class aR,Blade end X blade end,DIN 43 620,Standard,Clearing at 660V: 1950000,square body with centre-bolted tags (slotted),Top fuse status indicator,Current pre-arc: 290000,
Specifications
| UNSPSC | 39121625 |
|---|---|
| Amperage Rating | 1250 |
| Amperage Rating | 1250 A |
| Body Type | Square |
| Class | AR |
| Interrupt Rating | 200 |
| Interrupt Rating | 200 kA |
| Mounting type | DIN 43 620 |
| Mounting type | DIN 43 653 Stud |
| Series | 170M |
| Terminal Type | Blade End |
| Type | Semi-Conductor |
| Voltage Rating | 690 |
| Voltage Rating | 690 V |
| Voltage Rating | 700 |
