Description

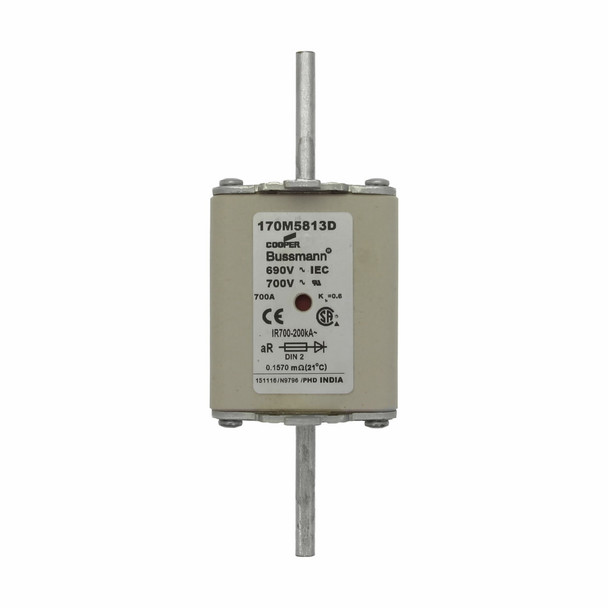

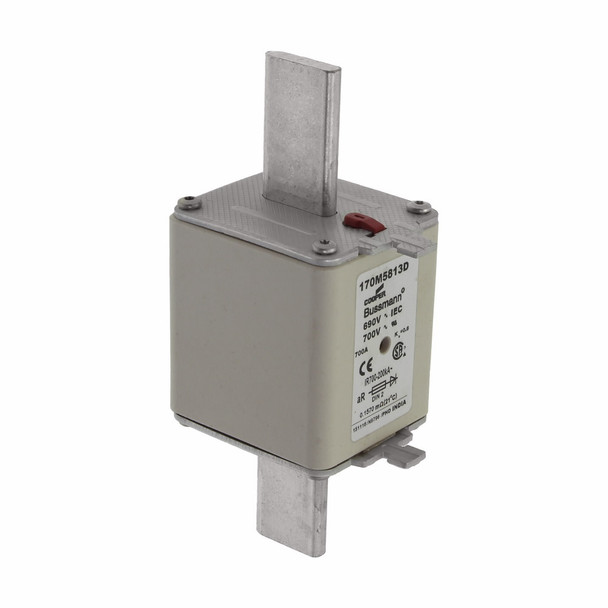

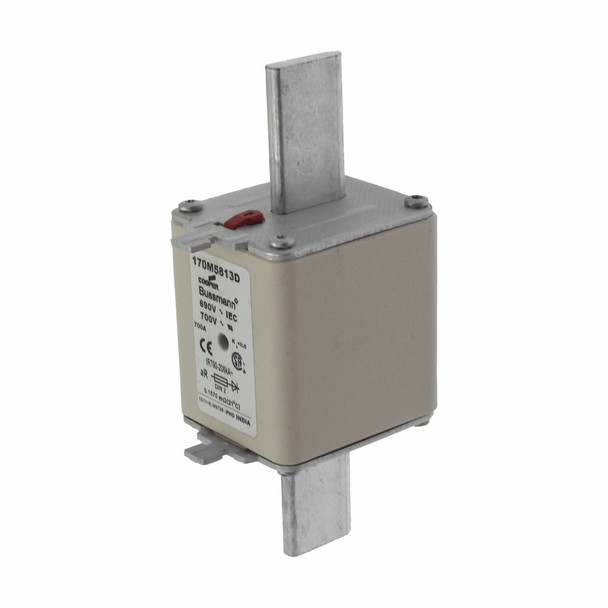

Bussmann 170M5813D High Speed Fuse
Bussmann High Speed Fuse, Square Body Type T, Series: 170M, Non-Indicating, 700 A, 690 V, 200 kA Interrupt, Class: aR, 45 to 1000 Hz Frequency, Din 43-620 Blade End Terminal, Stud Mounting, Square Body, Dual Element, Ceramic, 150 mm L x 55 mm W x 71 mm H Body
Additional Description: BUSS-170M5813D FUSE 700A 690V aR DIN 2 HSDNH
Catalog Description: Eaton Bussmann series high speed square body fuse, 700V (UL), 690V (IEC), 700A, 200 kAIC, Combination fuse status indicator, Fuse, Din 43-620 blade end X Din 43-620 blade end, Class aR
Specifications
| UNSPSC | 39121625 |
|---|---|
| Amperage Rating | 700 A |
| Body Type | Square |
| Class | AR |
| Frequency Rating | 45 to 1000 Hz |
| Indicating/Non-Indicating | Non-Indicating |
| Interrupt Rating | 200 kA |
| Material | Ceramic |
| Mounting type | Stud |
| Series | 170M |
| Terminal Type | Din 43-620 Blade End |
| Type | Square Body Type T |
| Voltage Rating | 690 V |
