Description

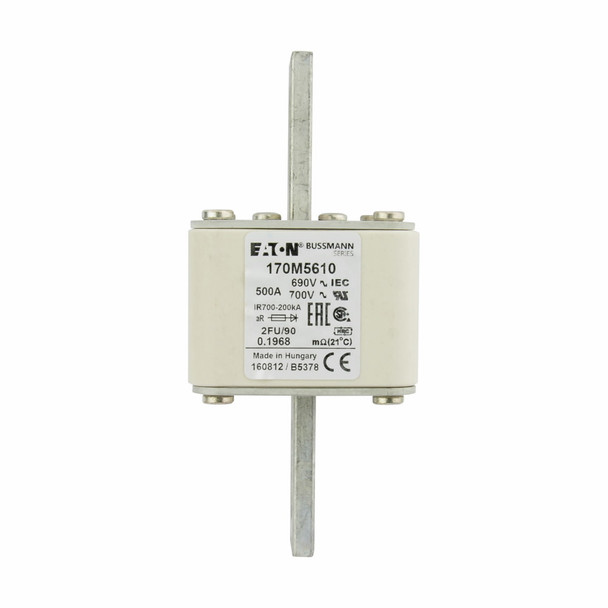

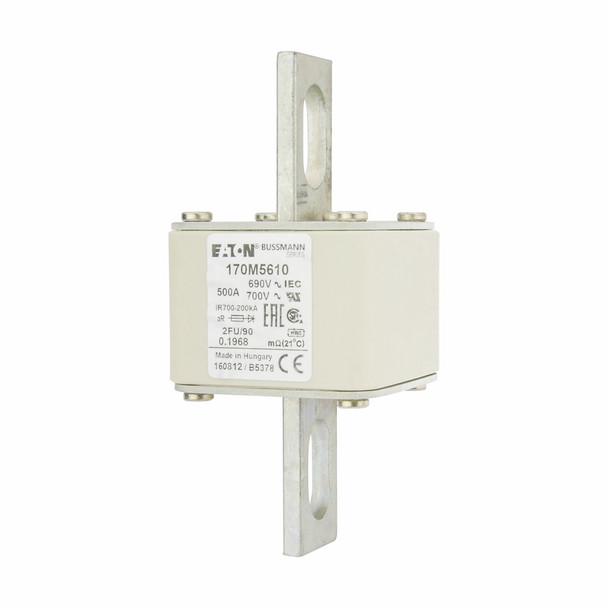

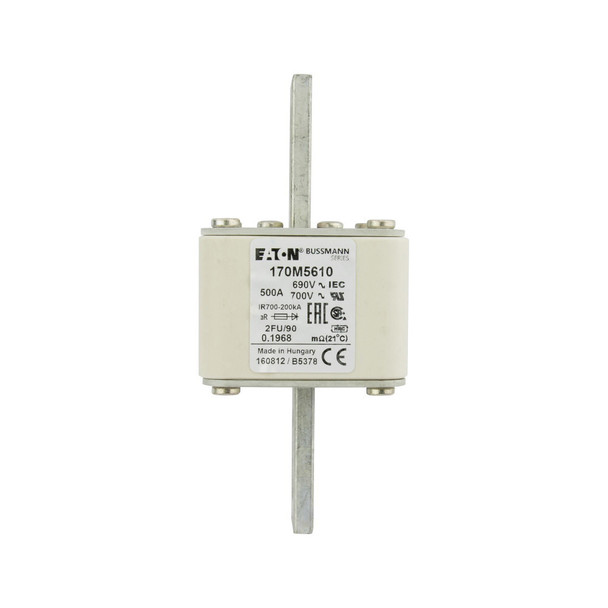

Bussmann 170M5610 High Speed Fuse
Bussmann High Speed Fuse, Type FU US Style, Series: 170M, Indicating/Non-Indicating: Non-Indicating, 500 A, 690 VAC, 200 kA Interrupt, Class: aR, 45 to 1000 Hz, Blade End Terminal, Stud Mount, Square Body, Ceramic, 135 mm L x 61 mm W x 77 mm H Body Size
Additional Description: BUSS-170M5610 FUSE 500A 690V 2FU/90 AR UC
Catalog Description: Eaton Bussmann series high speed square body fuse, 700V (UL), 690V (IEC), 500A, 200 kAIC, None, Blade end X blade end, Class aR
Specifications
| UNSPSC | 39121625 |
|---|---|
| Amperage Rating | 500 |
| Amperage Rating | 500 A |
| Body Type | Square |
| Class | AR |
| Frequency Rating | 45 to 1000 |
| Frequency Rating | 45 to 1000 Hz |
| Indicating/Non-Indicating | Non-Indicating |
| Interrupt Rating | 200 |
| Interrupt Rating | 200 kA |
| Material | Ceramic |
| Mounting type | Stud |
| Series | 170M |
| Terminal Type | Blade |
| Terminal Type | Blade End |
| Type | Type FU US Style |
| Voltage Rating | 690 VAC |
| Voltage Rating | 690/700 |
